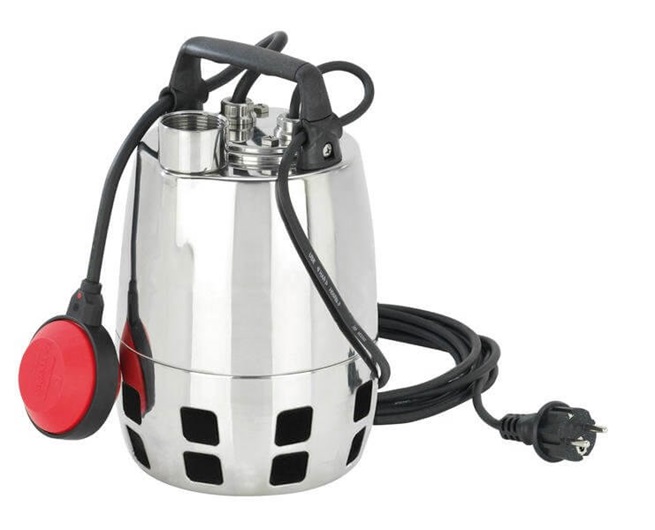

Calpeda GXVM submersible drainage pumps in stainless steel

Calpeda GXVM submersible drainage pumps in stainless steel

Submersible Pumps in stainless steel FLOW 1.2 / 13.2 mc/h HEAD 1.7 / 12.7 m POWER 0.25 / 0.6 kW

See more

Technical Specifications

Maximum flow [l/min]
170 - 220
Maximum head [m]
6 - 10
Input voltage [V]
230
Power output - P2 [kW]
0.25 - 0.45

Show all Tech Specs

from 310.83 VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Wastewater pumps
Product No.:
MAS000253

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Maximum flow [l/min]
170
Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0.25
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
2.50
Maximum liquid temperature [°C]
50
Cable length [m]
10
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
Maximum flow [l/min]
170
Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0.25
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
2.50
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
Maximum flow [l/min]
170
Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0.25
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
2.50
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
Maximum flow [l/min]
200
Maximum head [m]
8.20
Input voltage [V]
230
Power output - P2 [kW]
0.37
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
3.50
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
Maximum flow [l/min]
200
Maximum head [m]
8.20
Input voltage [V]
230
Power output - P2 [kW]
0.37
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
3.50
Maximum liquid temperature [°C]
50
Cable length [m]
10
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
Maximum flow [l/min]
200
Maximum head [m]
8.20
Input voltage [V]
230
Power output - P2 [kW]
0.37
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
3.50
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
Maximum flow [l/min]
220
Maximum head [m]
10
Input voltage [V]
230
Power output - P2 [kW]
0.45
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
4.50
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
Maximum flow [l/min]
220
Maximum head [m]
10
Input voltage [V]
230
Power output - P2 [kW]
0.45
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
4.50
Maximum liquid temperature [°C]
50
Cable length [m]
10
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
Maximum flow [l/min]
220
Maximum head [m]
10
Input voltage [V]
230
Power output - P2 [kW]
0.45
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
4.50
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Product description

Construction

Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.
Minimum dimension and high levels of performance, for use in many different applications, head up to 12,7 m and flow rates up to 220 liters/min.

Applications

- For clean water containing solids up to 10 mm grain size.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and
for rainwater collection.
- For irrigation purposes.
For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

Technical Specifications

Maximum flow [l/min]
170 - 220
Maximum head [m]
6 - 10
Input voltage [V]
230
Power output - P2 [kW]
0.25 - 0.45
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
2.50 - 4.50
Maximum liquid temperature [°C]
50
Cable length [m]
5 - 10
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
