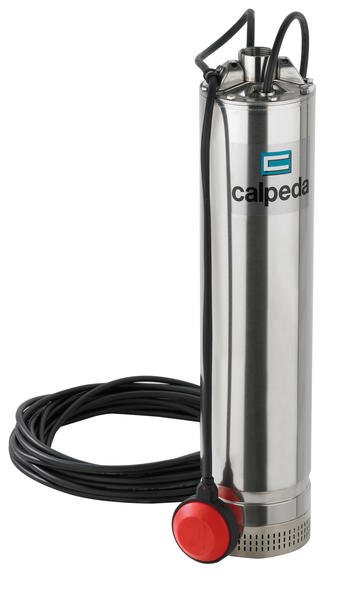

Calpeda MXSM 305 CG 0,75kW 230V with float switch, 15m cable

Multi-Stage Submersible Clean Water Pumps in stainless steel FLOW 1 / 11 mc/h HEAD 12 / 105 m POWER 0.55 / 3 kW

See more

Technical Specifications

Maximum flow [l/min]
75
Maximum head [m]
53
Input voltage [V]
230
Power output - P2 [kW]
0.75

Show all Tech Specs

in stock 4 pcs

521.56 € VAT included

the price includes a recycling fee

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Submersible pumps
Product No.:
ZB00001397
Sale group:
CECK
EAN:
8030485688846
Manuf. No.:
72G03051100

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda MXSM 303 0,45kW 230V 15m cable

Product No.: ZB00025584 Sale group: CECK EAN: 8030485725428 Manuf. No.: 72G03031000

on demand
check availability
Product availability
  • central warehouse 0 pcs

444.63 €

Check availability

Maximum flow [l/min]
75
Maximum head [m]
32.50
Input voltage [V]
230
Power output - P2 [kW]
0.45
Rated flow [l/m]
50
Rated head [m]
19.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
3.50
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 303 CG 0,45kW 230V with float switch, 15m cable

Product No.: ZB00025585 Sale group: CECK EAN: 8030485718444 Manuf. No.: 72G13031100

on demand
check availability
Product availability
  • central warehouse 0 pcs

479.29 €

Check availability

Maximum flow [l/min]
75
Maximum head [m]
32.50
Input voltage [V]
230
Power output - P2 [kW]
0.45
Rated flow [l/m]
50
Rated head [m]
19.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
3.50
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 304 0,55kW 230V 15m cable

Product No.: ZB00025586 Sale group: CECK EAN: 8030485707387 Manuf. No.: 72G03041000

on demand
check availability
Product availability
  • central warehouse 0 pcs

457.76 €

Check availability

Maximum flow [l/min]
75
Maximum head [m]
44
Input voltage [V]
230
Power output - P2 [kW]
0.55
Rated flow [l/m]
50
Rated head [m]
29.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4.10
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 304 CG 0,55kW 230V with float switch, 15m cable

Product No.: ZB00025587 Sale group: CECK EAN: 8030485706427 Manuf. No.: 72G03041100

on demand
check availability
Product availability
  • central warehouse 0 pcs

493.34 €

Check availability

Maximum flow [l/min]
75
Maximum head [m]
44
Input voltage [V]
230
Power output - P2 [kW]
0.55
Rated flow [l/m]
50
Rated head [m]
29.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
4.10
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 305 0,75kW 230V 15m cable

Product No.: ZB00001396 Sale group: CECK EAN: 8030485703471 Manuf. No.: 72G03051000

in stock
10 pcs
Product availability
  • central warehouse 10 pcs

492.69 €

Maximum flow [l/min]
75
Maximum head [m]
53
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
50
Rated head [m]
35
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 305 CG 0,75kW 230V with float switch, 15m cable

Product No.: ZB00001397 Sale group: CECK EAN: 8030485688846 Manuf. No.: 72G03051100

in stock
4 pcs
Product availability
  • central warehouse 4 pcs

521.56 €

Maximum flow [l/min]
75
Maximum head [m]
53
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
50
Rated head [m]
35
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
5
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal
You are viewing this variant

Calpeda MXSM 306 0,9kW 230V 15m cable

Product No.: ZB00001398 Sale group: CECK EAN: 8030485685050 Manuf. No.: 72G13061000

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

521.67 €

Maximum flow [l/min]
75
Maximum head [m]
65
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
50
Rated head [m]
43
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
6
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 306 CG 230V 0,9kW submersible pump with float switch, cable 15m

Product No.: ZB00001399 Sale group: CEPJ EAN: 8030485706434 Manuf. No.: 72G13061100

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

685.98 €

Maximum flow [l/min]
75
Maximum head [m]
65
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
50
Rated head [m]
43
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
6
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 307 0,9kW 230V 15m cable

Product No.: ZB00001400 Sale group: CECK EAN: 8030485680987 Manuf. No.: 72G13071000

in stock
10 pcs
Product availability
  • central warehouse 10 pcs

550.64 €

Maximum flow [l/min]
75
Maximum head [m]
77.50
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
50
Rated head [m]
49
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
6.60
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 307 CG 230V 0,9kW submersible pump with float switch, cable 15m

Product No.: ZB00001401 Sale group: CEPJ EAN: 8030485662563 Manuf. No.: 72G03071100

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

710.61 €

Maximum flow [l/min]
75
Maximum head [m]
77.50
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
50
Rated head [m]
49
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
6.60
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 308 1,1kW 230V 15m cable

Product No.: ZB00001402 Sale group: CECK EAN: 8030485717720 Manuf. No.: 72G03081000

in stock
8 pcs
Product availability
  • central warehouse 8 pcs

637.62 €

Maximum flow [l/min]
75
Maximum head [m]
88.50
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
50
Rated head [m]
56.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8.30
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 308 CG 230V 1,1kW submersible pump with float switch, cable 15m

Product No.: ZB00001403 Sale group: CEPJ EAN: 8030485705031 Manuf. No.: 72G03081100

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

777.40 €

Maximum flow [l/min]
75
Maximum head [m]
88.50
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
50
Rated head [m]
56.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
8.30
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 309 1,5kW 230V 15m cable

Product No.: ZB00025588 Sale group: CECK EAN: 8030485725404 Manuf. No.: 72G03091000

on demand
check availability
Product availability
  • central warehouse 0 pcs

766.72 €

Check availability

Maximum flow [l/min]
75
Maximum head [m]
100
Input voltage [V]
230
Power output - P2 [kW]
1.50
Rated flow [l/m]
50
Rated head [m]
62.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
9
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 309 CG 1,5kW 230V with float switch, 15m cable

Product No.: ZB00001404 Sale group: CECK EAN: 8030485668855 Manuf. No.: 72G03091100

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

800.39 €

Maximum flow [l/min]
75
Maximum head [m]
100
Input voltage [V]
230
Power output - P2 [kW]
1.50
Rated flow [l/m]
50
Rated head [m]
62.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
9
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 310 1,5kW 230V, 15m cable

Product No.: ZB00025589 Sale group: CECK EAN: 8030485725411 Manuf. No.: 72G03101000

on demand
check availability
Product availability
  • central warehouse 0 pcs

814.27 €

Check availability

Maximum flow [l/min]
75
Maximum head [m]
111
Input voltage [V]
230
Power output - P2 [kW]
1.50
Rated flow [l/m]
50
Rated head [m]
71
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
12
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 310 CG 1,5kW 230V with float switch, 15m cable

Product No.: ZB00025590 Sale group: CECK EAN: 8030485688754 Manuf. No.: 72G03101100

on demand
check availability
Product availability
  • central warehouse 0 pcs

847.91 €

Check availability

Maximum flow [l/min]
75
Maximum head [m]
111
Input voltage [V]
230
Power output - P2 [kW]
1.50
Rated flow [l/m]
50
Rated head [m]
71
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
12
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Product description

Construction

Close coupled multi-stage submersible pumps.
All parts in contact with the fluid both internal and external are in chrome-nickle stainless steel.
MXSM with built-in capacitor, accessible through the delivery casing.
Hydraulics located below the motor with the motor cooled by the pumped fluid. Safe operation is possible with the motor only partially submerged.
Double shaft seal with oil chamber.
The suction strainer prevents the entrance of solids with diameter bigger than 2 mm.

Applications

- For water supply from wells, tanks or reservoirs.
- For domestic, civil and industrial applications, for garden use, irrigation and rain water harvesting systems.

Instructions

Technical Specifications

Maximum flow [l/min]
75
Maximum head [m]
53
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
50
Rated head [m]
35
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
5
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Accessories

previous next
