Calpeda MXV-B 32-5xx vertical multi-stage close coupled pumps in stainless steel 3x400V

  • Calpeda MXV-B 32-5xx vertical multi-stage close coupled pumps in stainless steel 3x400V
    Calpeda MXV-B 32-5xx vertical multi-stage close coupled pumps in stainless steel 3x400V
  • Calpeda MXV-B 32-5xx vertical multi-stage close coupled pumps in stainless steel 3x400V
    Calpeda MXV-B 32-5xx vertical multi-stage close coupled pumps in stainless steel 3x400V

Drinking water certificate

previous next
Calpeda MXV-B 32-5xx vertical multi-stage close coupled pumps in stainless steel 3x400V Calpeda MXV-B 32-5xx vertical multi-stage close coupled pumps in stainless steel 3x400V
Calpeda MXV-B 32-5xx vertical multi-stage close coupled pumps in stainless steel 3x400V

Vertical Multi-Stage Close Coupled Pumps See more

Technical Specifications

Maximum flow [l/min]
133
Maximum head [m]
34 - 114
Input voltage [V]
3x400
Power output - P2 [kW]
0.75 - 2.20

Show all Tech Specs

on demand check availability

from 1,106.42 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001466

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Maximum pressure [bar]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

MXV-B 32-503 O 230 / 400V 0.75kW oval flange

Product No.: ZB00066628 Sale group: CECP EAN: 8030485789888 Manuf. No.: 62H50301000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,106.42 €

Not sellable online

Maximum flow [l/min]
133
Maximum head [m]
34
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Suction port ["]
DN32
Rated flow [l/m]
83.30
Rated head [m]
25
Delivery port ["]
DN32
Maximum suction lift [m]
8.70
Drinking water certificate
YES
Maximum current [A]
2.30
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage

MXV-B 32-504 O 230 / 400V 1.1kW oval flange

Product No.: ZB00066629 Sale group: CECP EAN: 8030485773658 Manuf. No.: 62H50401000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,140.18 €

Not sellable online

Maximum flow [l/min]
133
Maximum head [m]
45
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Suction port ["]
DN32
Rated flow [l/m]
83.30
Rated head [m]
32.50
Delivery port ["]
DN32
Maximum suction lift [m]
8.70
Drinking water certificate
YES
Maximum current [A]
2.70
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage

MXV-B 32-505 O 230 / 400V 1.1kW oval flange

Product No.: ZB00066630 Sale group: CECP EAN: 8030485749073 Manuf. No.: 62H50501000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,180.48 €

Not sellable online

Maximum flow [l/min]
133
Maximum head [m]
56
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Suction port ["]
DN32
Rated flow [l/m]
83.30
Rated head [m]
41
Delivery port ["]
DN32
Maximum suction lift [m]
8.70
Drinking water certificate
YES
Maximum current [A]
2.70
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage

MXV-B 32-506 O 230 / 400V 1.5 kW oval flange

Product No.: ZB00066631 Sale group: CECP EAN: 8030485753186 Manuf. No.: 62H50601000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,230.57 €

Not sellable online

Maximum flow [l/min]
133
Maximum head [m]
68
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Suction port ["]
DN32
Rated flow [l/m]
83.30
Rated head [m]
49.50
Delivery port ["]
DN32
Maximum suction lift [m]
8.70
Drinking water certificate
YES
Maximum current [A]
4.30
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage

MXV-B 32-507 O 230 / 400V 1.5 kW oval flange

Product No.: ZB00066632 Sale group: CECP EAN: 8030485717799 Manuf. No.: 62H50701000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,293.73 €

Not sellable online

Maximum flow [l/min]
133
Maximum head [m]
79.50
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Suction port ["]
DN32
Rated flow [l/m]
83.30
Rated head [m]
58
Delivery port ["]
DN32
Maximum suction lift [m]
8.70
Drinking water certificate
YES
Maximum current [A]
4.30
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage

MXV-B 32-508 O 230 / 400V 2.2kW oval flange

Product No.: ZB00066633 Sale group: CECP EAN: 8030485749080 Manuf. No.: 62H50801000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,365.61 €

Not sellable online

Maximum flow [l/min]
133
Maximum head [m]
91
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
DN32
Rated flow [l/m]
83.30
Rated head [m]
66
Delivery port ["]
DN32
Maximum suction lift [m]
8.70
Drinking water certificate
YES
Maximum current [A]
5.30
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage

MXV-B 32-510 O 230 / 400V 2.2kW oval flange

Product No.: ZB00066634 Sale group: CECP EAN: 8030485717959 Manuf. No.: 62H51001000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,445.10 €

Not sellable online

Maximum flow [l/min]
133
Maximum head [m]
114
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
DN32
Rated flow [l/m]
83.30
Rated head [m]
83
Delivery port ["]
DN32
Maximum suction lift [m]
8.70
Drinking water certificate
YES
Maximum current [A]
5.30
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage

Product description

Construction

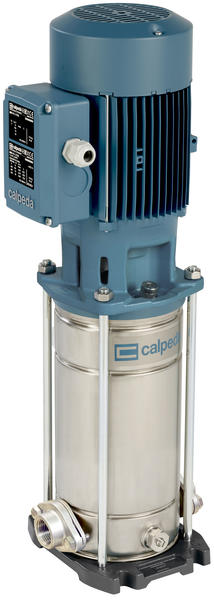

Vertical multi-stage close coupled pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line).
All parts that come into contact with the liquid, including wet-end covers, are in chrome-nickel stainless steel with corrosionresistant bearing sleeves lubricated by the pumped liquid.

Applications

- For water supply systems.
- For clean non-explosive liquids, without solid, filamentary or abrasive matter and non-aggressive for stainless steel (with adaptation of sealing materials on request).
- A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.

Instructions

Technical Specifications

Maximum flow [l/min]
133
Maximum head [m]
34 - 114
Input voltage [V]
3x400
Power output - P2 [kW]
0.75 - 2.20
Suction port ["]
DN32
Rated flow [l/m]
83.30
Rated head [m]
25 - 83
Delivery port ["]
DN32
Maximum suction lift [m]
8.70
Drinking water certificate
YES
Maximum current [A]
2.30 - 5.30
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16 - 16
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage
