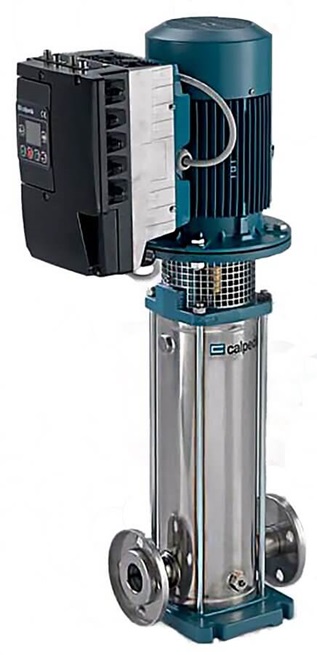

Calpeda MXV EI vertical pumps with frequency converter
The MXV EI pumps are available with power from 0,75 kW up to 22 kW, the pumps are equipped with I-MAT installed on board which allows to realize a variable-speed system extremely compact and efficient, ideal in applications of water supply and in the distribution of hot and cold water. The pump is equipped with transducers suitable for operation and is already programmed at the factory.
- Brand:
- CALPEDA
- Category:
- Vertical surface pumps
- Product No.:
- MAS000239
Product description
Advantages
- Energy saving
- Compact design
- Easy to use
- Programmable to suit the system requirements
- Reliability
The system comprises of:
- Pump
- Induction motor
- I-MAT Frequency converter
- Motor adapter for the motor mounting of the frequency converter
- Connection cable between frequency converter and induction motor
- Transducers
Main features
Rated motor power output from 0,75 kW to 22 kW
Control range from 1750 to 2900 rpm (2-pole)
Protection against dry running
Protection against operations with closed connection ports
Protection against system leakages
Protection against overcurrent in the motor
Protection agains overvoltage and undervoltage of the power supply
Protection against current unbalances between phases
Instructions
Technical Specifications
- Input voltage [V]
- Suction port ["]
- Extended warranty
- Delivery port ["]
- Drinking water certificate
- Protection [IP]
- Automatic thermal protection
- Dry run protection
- Off switch
- Speed control
- Capacitor
- Pump design
- Impeller material
- Construction
