Calpeda NM 2/B/A 0,55kW 230/400V 2900rpm

Close Coupled Centrifugal Pumps with threaded ports See more

Technical Specifications

Maximum flow [l/min]
80
Maximum head [m]
27
Input voltage [V]
3x400
Power output - P2 [kW]
0.55

Show all Tech Specs

on demand check availability

283.69 € VAT included

On demand

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
ZB00014117
Sale group:
CECP
EAN:
8030485027652
Manuf. No.:
6002002000000

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NM 2/B/A 0,55kW 230/400V 2900rpm

Product No.: ZB00014117 Sale group: CECP EAN: 8030485027652 Manuf. No.: 6002002000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

283.69 €

Check availability

Maximum flow [l/min]
80
Maximum head [m]
27
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
1.70
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock
You are viewing this variant

Calpeda NM 2/S/A 0,55kW 230/400V 2900rpm

Product No.: ZB00014053 Sale group: CECK EAN: 8030485000259 Manuf. No.: 6002003000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

283.35 €

Check availability

Maximum flow [l/min]
80
Maximum head [m]
31
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
1.70
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda NM 2/A/B 230/400V 0,75kW 2900rpm

Product No.: ZB00001548 Sale group: CECK EAN: 8030485896777 Manuf. No.: 6002004100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

295.24 €

Check availability

Maximum flow [l/min]
100
Maximum head [m]
34
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2.20
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Product description

Construction

Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.

NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).

Connections: threaded ports ISO 228/1 (BS 2779).

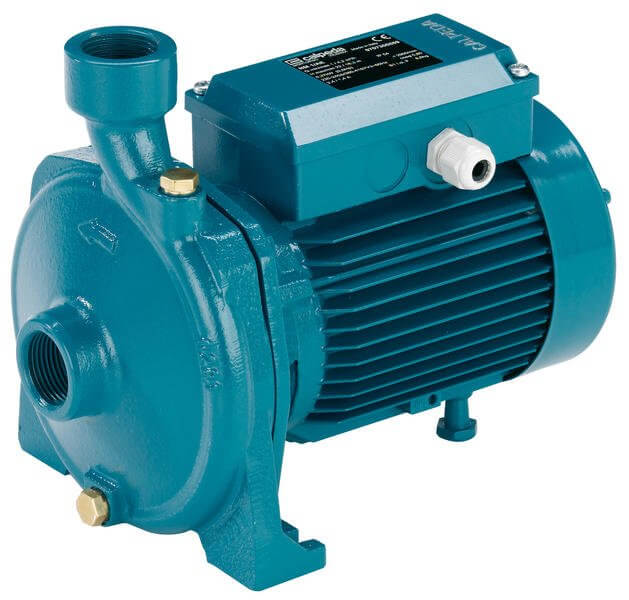

NM, NMD: version with pump casing and lanter bracket in cast iron.

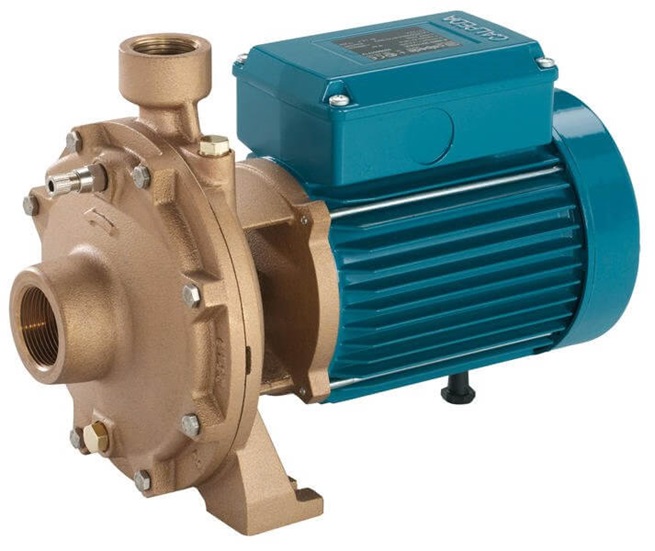

B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Instructions

Technical Specifications

Maximum flow [l/min]
80
Maximum head [m]
27
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
1.70
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock
