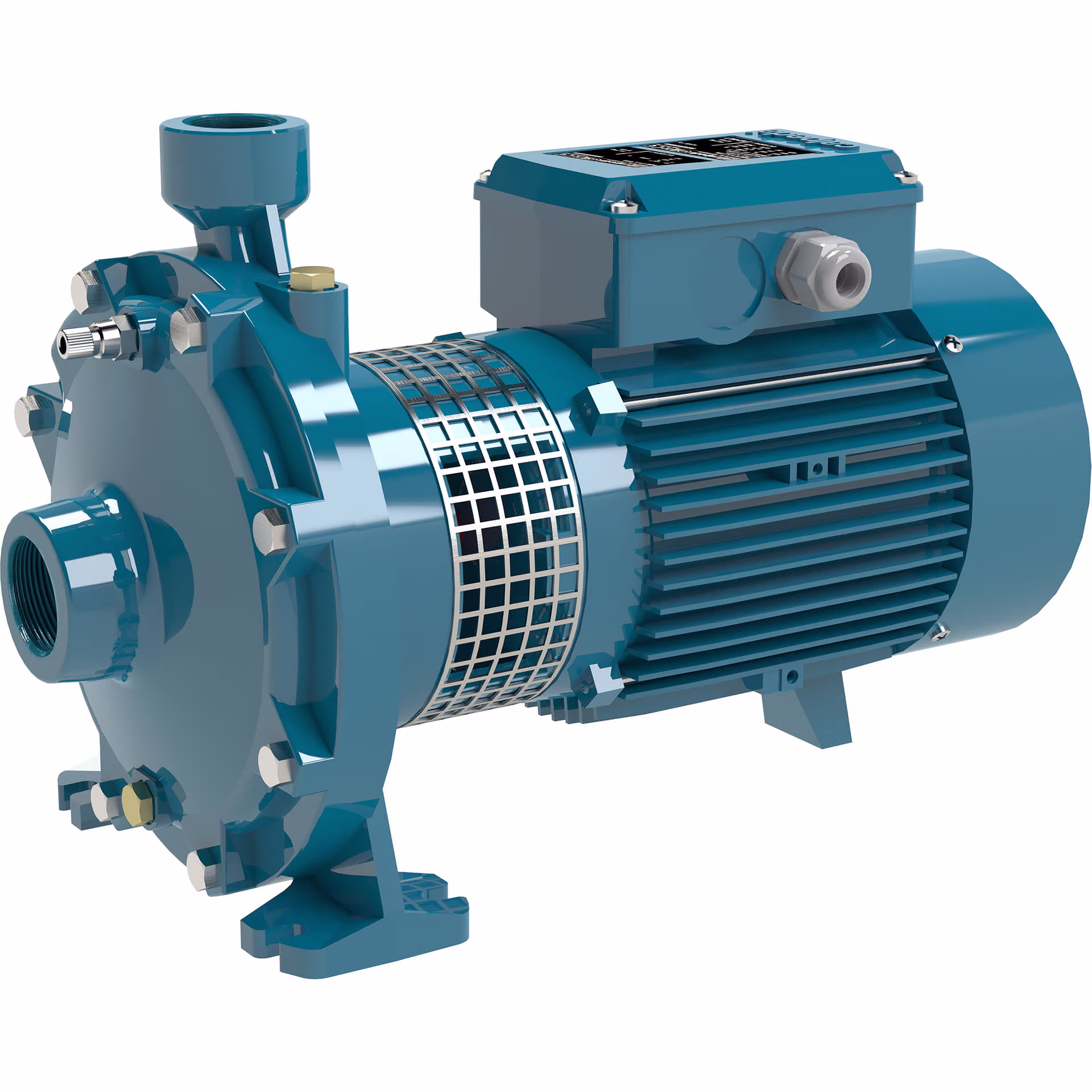

Calpeda NMD 32/210D/B 400/690V 4,0kW 2900rpm

Close Coupled Centrifugal Pumps with threaded ports See more

Technical Specifications

Maximum flow [l/min]
220
Maximum head [m]
71
Input voltage [V]
3x400
Power output - P2 [kW]
4

Show all Tech Specs

in stock 2 pcs

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us by email [email protected]

1,369.23 € VAT included

Not sellable online

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
ZB00001425
Sale group:
CECP
EAN:
8030485895268
Manuf. No.:
60200143000

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NMD 32/210D/B 400/690V 4,0kW 2900rpm

Product No.: ZB00001425 Sale group: CECP EAN: 8030485895268 Manuf. No.: 60200143000

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,369.23 €

Not sellable online

Maximum flow [l/min]
220
Maximum head [m]
71
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
9,60
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller
You are viewing this variant

Calpeda NMD 32/210C/A 400/690V 5,5kW 2900rpm

Product No.: ZB00001545 Sale group: CECP EAN: 8030485591429 Manuf. No.: 60200162000

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,571.34 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
84
Input voltage [V]
3x400
Power output - P2 [kW]
5,50
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
10,90
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller

Calpeda NMD 32/210B/A 400/690V 7,5kW 2900rpm

Product No.: ZB00013996 Sale group: CECP EAN: 8030485592396 Manuf. No.: 60200182000

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,767.41 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
104
Input voltage [V]
3x400
Power output - P2 [kW]
7,50
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
14,30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller

Calpeda NMD 32/210A/B 400/690V 9,2kW 2900rpm

Product No.: ZB00025867 Sale group: CECP EAN: 8030485869269 Manuf. No.: 60200203000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,080.19 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
114
Input voltage [V]
3x400
Power output - P2 [kW]
9,20
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
18,50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller

Product description

Construction

Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.

NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).

Connections: threaded ports ISO 228/1 (BS 2779).

NM, NMD: version with pump casing and lanter bracket in cast iron.
B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Instructions

Technical Specifications

Maximum flow [l/min]
220
Maximum head [m]
71
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
9,60
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller
