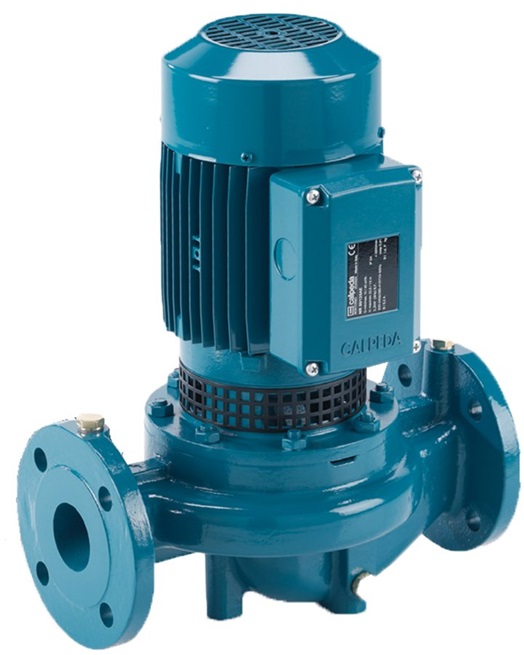

Calpeda NR 65 close-coupled, single-impeller centrifugal pumps

Close-coupled, single-impeller, centrifugal pumps; electric motor with extended shaft directly connected to the pump. See more

Technical Specifications

Maximum flow [l/min]
1,100 - 1,200
Maximum head [m]
16.50 - 78.50
Input voltage [V]
3x400
Power output - P2 [kW]
2.20 - 18.50

Show all Tech Specs

on demand check availability

from 958.50 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Surface pumps
Product No.:
MAS001410

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NR 65/125F/B 230/400V 2,2kW 2900rpm, in-line centrifugal pump

Product No.: ZB00044664 Sale group: CECP EAN: 8030485909880 Manuf. No.: 70MA102200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

958.50 €

Not sellable online

Maximum flow [l/min]
1,100
Maximum head [m]
16.50
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
5.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/125D/A 230/400V 3,0kW 2900rpm, in-line centrifugal pump

Product No.: ZB00025931 Sale group: CECP EAN: 8030485635192 Manuf. No.: 70MA1061000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,042.44 €

Not sellable online

Maximum flow [l/min]
1,100
Maximum head [m]
21.10
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
6.60
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/125A/B 400/690V 4,0kW 2900rpm, in-line centrifugal pump

Product No.: ZB00043981 Sale group: CECP EAN: 8030485894698 Manuf. No.: 70MA1122000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,278.08 €

Not sellable online

Maximum flow [l/min]
1,150
Maximum head [m]
25
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
9.40
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/125S/B 400/690V 4,0kW 2900rpm, in-line centrifugal pump

Product No.: ZB00014360 Sale group: CECP EAN: 8030485893394 Manuf. No.: 70MA1162000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,144.15 €

Not sellable online

Maximum flow [l/min]
1,150
Maximum head [m]
27.20
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
9.40
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/160 B/A 400/690V 5,5kW 2900rpm, in-line centrifugal pump

Product No.: ZB00014367 Sale group: CECP EAN: 8030485587712 Manuf. No.: 70MA1201000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,604.72 €

Not sellable online

Maximum flow [l/min]
1,200
Maximum head [m]
31.90
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
10.80
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/160A/A 400/690V 7,5kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065971 Sale group: CECP EAN: 8030485589402 Manuf. No.: 70MA1241000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,982.73 €

Not sellable online

Maximum flow [l/min]
1,200
Maximum head [m]
39
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
14.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/200B/B 400/690V 9,2kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065939 Sale group: CECP EAN: 8030485845874 Manuf. No.: 70MA1322000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,773.80 €

Not sellable online

Maximum flow [l/min]
1,100
Maximum head [m]
47.10
Input voltage [V]
3x400
Power output - P2 [kW]
9.20
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
18.50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/200A/A 400/690V 11kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065940 Sale group: CECP EAN: 8030485616153 Manuf. No.: 70MA1361000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,085.18 €

Not sellable online

Maximum flow [l/min]
1,100
Maximum head [m]
54.20
Input voltage [V]
3x400
Power output - P2 [kW]
11
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
21.50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/250C/A 400/690V 11kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065942 Sale group: CECP EAN: 8030485630425 Manuf. No.: 70MA1441000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,402.03 €

Not sellable online

Maximum flow [l/min]
1,100
Maximum head [m]
54.60
Input voltage [V]
3x400
Power output - P2 [kW]
11
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
21.50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/200S/B 400/690V 15kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065941 Sale group: CECP EAN: 8030485851493 Manuf. No.: 70MA1402000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,464.74 €

Not sellable online

Maximum flow [l/min]
1,100
Maximum head [m]
60.40
Input voltage [V]
3x400
Power output - P2 [kW]
15
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
27.50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/250B/B 400/690V 15kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065943 Sale group: CECP EAN: 8030485873082 Manuf. No.: 70MA1482000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,776.83 €

Not sellable online

Maximum flow [l/min]
1,100
Maximum head [m]
67.10
Input voltage [V]
3x400
Power output - P2 [kW]
15
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
27.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Calpeda NR 65/250A/C 400/690V 18,5kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065944 Sale group: CECP EAN: 8030485563419 Manuf. No.: 70MA1523000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,616.89 €

Not sellable online

Maximum flow [l/min]
1,100
Maximum head [m]
78.50
Input voltage [V]
3x400
Power output - P2 [kW]
18.50
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
34
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron

Product description

Applications

  • For clean liquids, without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0.2%).
  • For heating, conditioning, cooling and circulation plants.
  • For civil and industrial applications.
  • When low noise operation is required (n = 1450 rpm).

Instructions

Technical Specifications

Maximum flow [l/min]
1,100 - 1,200
Maximum head [m]
16.50 - 78.50
Input voltage [V]
3x400
Power output - P2 [kW]
2.20 - 18.50
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum suction lift [m]
7
Maximum current [A]
5.30 - 34
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
