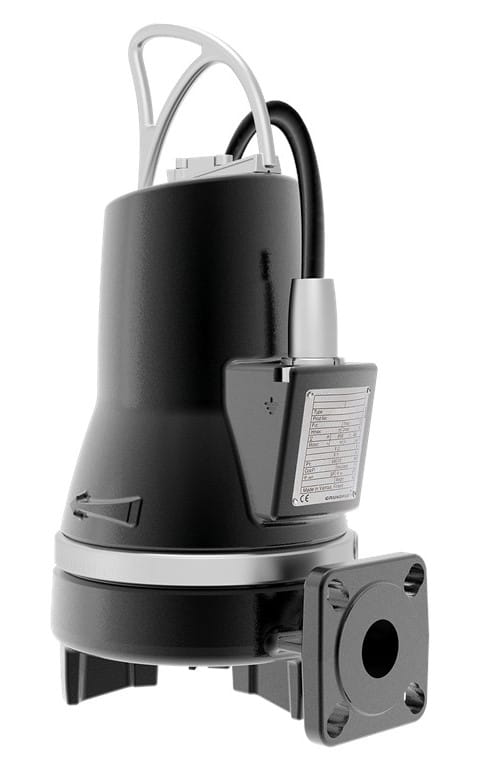

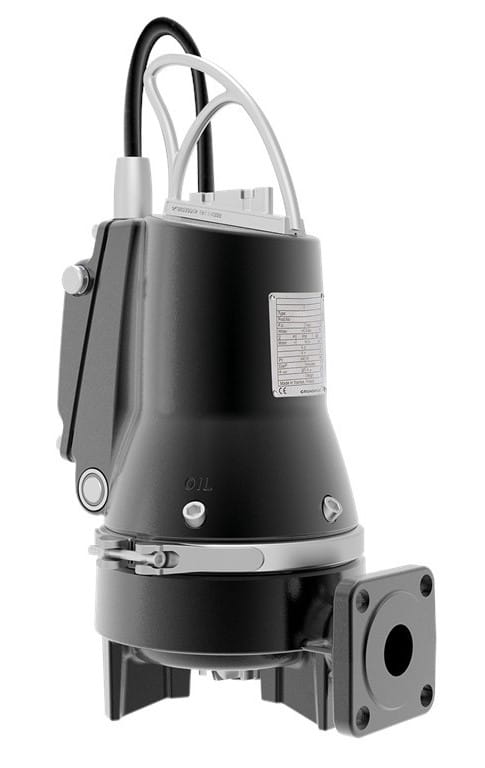

GRUNDFOS SEG sewage grinder pumps

Submersible Grundfos SEG sewage grinder pumps (0.9-4 kW) are designed for pumping wastewater, sludge-containing water, and sewage. Fitted with a patented grinder system designed to grind the media See more

Technical Specifications

Maximum flow [l/min]
263.40 - 316.80
Maximum head [m]
14.40 - 25.80
Input voltage [V]
3x400
Power output - P2 [kW]
0.90 - 1.50

Show all Tech Specs

in stock >10 pcs

from 1,788.93 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Wastewater pumps
Product No.:
MAS000549

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Power input - P1 [kW]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos SEG.40.09.2.50B 0,9kW 400V sewage grinder pump

Product No.: ZB00002507 Sale group: CEGJ1 EAN: 5700394850698 Manuf. No.: 96075897

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

1,788.93 €

Not sellable online

Maximum flow [l/min]
266.40
Maximum head [m]
14.40
Input voltage [V]
3x400
Power output - P2 [kW]
0.90
Power input - P1 [kW]
1.30
Delivery port ["]
DN40
Maximum immersion depth [m]
10
Float switch
NO
Maximum current [A]
3
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
YES

Grundfos SEG.40.12.2.50B 1,2kW 400V sewage grinder pump

Product No.: ZB00002500 Sale group: CEGJ1 EAN: 5700394850780 Manuf. No.: 96075905

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

1,806.91 €

Not sellable online

Maximum flow [l/min]
300
Maximum head [m]
20.70
Input voltage [V]
3x400
Power output - P2 [kW]
1.20
Power input - P1 [kW]
1.60
Delivery port ["]
DN40
Maximum immersion depth [m]
10
Float switch
NO
Maximum current [A]
3
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
YES

Grundfos SEG.40.12.E.2.50B AUTOADAPT 1,2 kW 400V sewage grinder pump

Product No.: ZB00002797 Sale group: CEGJ1 EAN: 5700312551232 Manuf. No.: 96878510

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,540.68 €

Not sellable online

Maximum flow [l/min]
285
Maximum head [m]
20,70
Input voltage [V]
3x400
Power output - P2 [kW]
1,20
Power input - P1 [kW]
1,80
Delivery port ["]
DN40
Maximum immersion depth [m]
10
Float switch
NO
Maximum current [A]
3,20
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
YES

Grundfos SEG.40.09.E.2.50B AUTOADAPT 0,9kW 400V sewage grinder pump

Product No.: ZB00002799 Sale group: CEGJ1 EAN: 5700312551171 Manuf. No.: 96878506

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,540.68 €

Not sellable online

Maximum flow [l/min]
263.40
Maximum head [m]
14.40
Input voltage [V]
3x400
Power output - P2 [kW]
0.90
Power input - P1 [kW]
1.40
Delivery port ["]
DN40
Maximum immersion depth [m]
10
Float switch
NO
Maximum current [A]
2.70
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
YES

Grundfos SEG.40.15.2.50B 1,5kW 400V sewage grinder pump

Product No.: ZB00002785 Sale group: CEGWB EAN: 5700394850834 Manuf. No.: 96075909

in stock
10 pcs
Product availability
  • central warehouse 10 pcs

1,900.14 €

Not sellable online

Maximum flow [l/min]
316.80
Maximum head [m]
25.80
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Power input - P1 [kW]
2.10
Delivery port ["]
DN40
Maximum immersion depth [m]
10
Float switch
NO
Maximum current [A]
4
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
YES

Product description

SEG grinder pumps are built tough and versatile

SEG grinder pumps 0.9-4 kW are the perfect choice for pumping untreated wastewater and toilet waste from single houses, small communities and less populated areas as part of a pressurised pipe network where sewer systems or gravitation systems aren’t an option. SEG grinder pumps are designed for reliability and efficiency and are very cost-effective. The capability for use with smaller pressure pipes means the pumps are cheaper to install and operate, more energy-efficient and reliable for years to come.

AUTOADAPT versions incorporate a controller, sensors and motor protection. Simply connect to the mains supply and the pump adapts automatically to the conditions in the pit.

Efficient, cost-effective and reliable

The patented Grundfos grinder enables use with smaller pressure pipes.

Toolless operation

Unique clamp system allows quick and easy disassembly from motor unit, with no tools required.

AUTOADAPT

With Grundfos AUTOADAPT, a controller, sensors and motor protection are built into the pump, and up to four pumps calibrate and adapt automatically to conditions in the pit.

GO Remote

Communication with Grundfos GO Remote and Modbus network, with CIU for configuration of AUTOADAPT data.

Instructions

Technical Specifications

Maximum flow [l/min]
263.40 - 316.80
Maximum head [m]
14.40 - 25.80
Input voltage [V]
3x400
Power output - P2 [kW]
0.90 - 1.50
Power input - P1 [kW]
1.30 - 2.10
Delivery port ["]
DN40
Maximum immersion depth [m]
10
Float switch
NO
Maximum current [A]
2.70 - 4
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO, YES
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
YES
