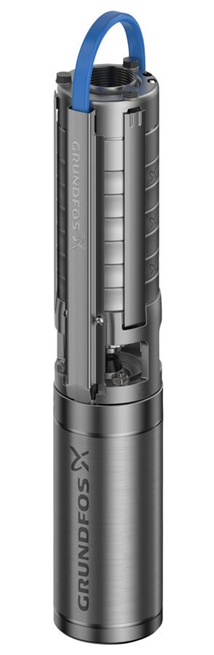

Grundfos SP 9-13 3,0kW 400V Rp2 "submersible pump

Grundfos SP are submersible borehole pumps, designed for pumping groundwater. Grundfos SP are all stainless-steel pumps, and they are available in 3 material grades. The pumps are suitable for boreholes in sizes ranging 4". The motor sizes for the pumps are available in 0.37-250 kW See more

Technical Specifications

Maximum flow [l/min]
190
Maximum head [m]
83
Input voltage [V]
3x400
Power output - P2 [kW]
3

Show all Tech Specs

on demand check availability

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us by email [email protected]

2,175.96 € VAT included

Not sellable online

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Submersible borehole pumps
Product No.:
ZB00029151
Sale group:
CEGWG
EAN:
5712600105959
Manuf. No.:
98699056

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos SP 9-4 0.75kW 400V Rp2 "submersible pump

Product No.: ZB00067686 Sale group: CEGWG EAN: 5712601277587 Manuf. No.: 98779736

on demand
check availability
Product availability
  • central warehouse 0 pcs

948.42 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
26
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
2.30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-8 1,5kW 400V Rp2 "submersible pump

Product No.: ZB00048575 Sale group: CEGWG EAN: 5712600105911 Manuf. No.: 98699054

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,359.48 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
51
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4.20
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-10 2,2kW 400V Rp2 "submersible pump

Product No.: ZB00067679 Sale group: CEGWG EAN: 5712601278249 Manuf. No.: 98779739

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,621.84 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
65
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5.50
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-11 2.2kW 400V Rp2 "submersible pump

Product No.: ZB00002754 Sale group: CEGWG EAN: 5712600105935 Manuf. No.: 98699055

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

1,697.27 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
71
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5.50
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-13 3,0kW 400V Rp2 "submersible pump

Product No.: ZB00029151 Sale group: CEGWG EAN: 5712600105959 Manuf. No.: 98699056

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,175.96 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
83
Input voltage [V]
3x400
Power output - P2 [kW]
3
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
7.85
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal
You are viewing this variant

Grundfos SP 9-16 3,0kW 400V Rp2 "submersible pump

Product No.: ZB00044291 Sale group: CEGWG EAN: 5712600105973 Manuf. No.: 98699057

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,401.13 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
102
Input voltage [V]
3x400
Power output - P2 [kW]
3
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
7.85
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-18 4,0kW 400V Rp2 "submersible pump

Product No.: ZB00065762 Sale group: CEGWG EAN: 5712600105997 Manuf. No.: 98699058

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,676.03 €

Not sellable online

Maximum flow [l/min]
150
Maximum head [m]
117
Input voltage [V]
3x400
Power output - P2 [kW]
4
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
9.60
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-21 4,0kW 400V Rp2 "submersible pump

Product No.: ZB00067497 Sale group: CEGWG EAN: 5712600106017 Manuf. No.: 98699059

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,904.58 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
135
Input voltage [V]
3x400
Power output - P2 [kW]
4
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
9.60
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-23 5,5kW 400V Rp2 "submersible pump

Product No.: ZB00002731 Sale group: CEGWG EAN: 5712600106031 Manuf. No.: 98699060

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,420.36 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
148
Input voltage [V]
3x400
Power output - P2 [kW]
5,50
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
13
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-25 5.5kW 400V Rp2 "submersible pump

Product No.: ZB00048561 Sale group: CEGWG EAN: 5712600106055 Manuf. No.: 98699061

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,570.10 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
162
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
13
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-29 5.5kW 400V Rp2 "submersible pump

Product No.: ZB00067498 Sale group: CEGWG EAN: 5712600106079 Manuf. No.: 98699062

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,869.58 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
187
Input voltage [V]
3x400
Power output - P2 [kW]
5,50
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
13
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-32 7.5kW 400V Rp2 "submersible pump

Product No.: ZB00067499 Sale group: CEGWG EAN: 5712600106093 Manuf. No.: 98699063

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,706.04 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
207
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
18.80
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-36 7.5kW 400V Rp2 "submersible pump

Product No.: ZB00067500 Sale group: CEGWG EAN: 5712600106116 Manuf. No.: 98699064

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,019.09 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
233
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
18.80
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-40 7.5kW 400V Rp2 "submersible pump

Product No.: ZB00067501 Sale group: CEGWG EAN: 5712600106130 Manuf. No.: 98699065

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,319.69 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
256
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
18.80
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-44 9,2kW 400V Rp2 "submersible pump

Product No.: ZB00067680 Sale group: CEGWG EAN: 5712600106277 Manuf. No.: 98699072

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,149.13 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
284
Input voltage [V]
3x400
Power output - P2 [kW]
9.20
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
21.20
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-48 9,2kW 400V Rp2 "submersible pump

Product No.: ZB00067681 Sale group: CEGWG EAN: 5712600106291 Manuf. No.: 98699073

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,449.74 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
310
Input voltage [V]
3x400
Power output - P2 [kW]
9.20
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
21.20
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-56 11kW 400V Rp2 "submersible pump

Product No.: ZB00067682 Sale group: CEGWG EAN: 5712600106338 Manuf. No.: 98699075

on demand
check availability
Product availability
  • central warehouse 0 pcs

9,529.31 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
362
Input voltage [V]
3x400
Power output - P2 [kW]
11
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
25
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-60 13kW 400V Rp2 "submersible pump

Product No.: ZB00067683 Sale group: CEGWG EAN: 5712600106352 Manuf. No.: 98699076

on demand
check availability
Product availability
  • central warehouse 0 pcs

10,069.87 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
390
Input voltage [V]
3x400
Power output - P2 [kW]
13
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
29
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-65 13kW 400V Rp2 "submersible pump

Product No.: ZB00067684 Sale group: CEGWG EAN: 5712600106376 Manuf. No.: 98699077

on demand
check availability
Product availability
  • central warehouse 0 pcs

10,609.17 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
418
Input voltage [V]
3x400
Power output - P2 [kW]
13
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
29
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-79 15kW 400V Rp2 "submersible pump

Product No.: ZB00067685 Sale group: CEGWG EAN: 5712600106437 Manuf. No.: 98699080

on demand
check availability
Product availability
  • central warehouse 0 pcs

12,292.61 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
510
Input voltage [V]
3x400
Power output - P2 [kW]
15
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
33.50
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-86 18,5kW 400V Rp2 "submersible pump

Product No.: ZB00067690 Sale group: CEGWG EAN: 5712603262178 Manuf. No.: 98901304

on demand
check availability
Product availability
  • central warehouse 0 pcs

13,434.34 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
559
Input voltage [V]
3x400
Power output - P2 [kW]
18,50
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
41
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 9-93 18,5kW 400V Rp2 "submersible pump

Product No.: ZB00067691 Sale group: CEGWG EAN: 5712603262192 Manuf. No.: 98901305

on demand
check availability
Product availability
  • central warehouse 0 pcs

14,189.80 €

Not sellable online

Maximum flow [l/min]
190
Maximum head [m]
600
Input voltage [V]
3x400
Power output - P2 [kW]
18.50
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
41
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Product description

The Grundfos SP submersible pump is a highly durable pump made of high-quality stainless steel.

Thanks to the optimized hydraulic design, SP provides optimal efficiency and low operating costs and high operational reliability. These pumps are suitable for various applications such as groundwater pumping in water management, irrigation, groundwater level reduction, pressure boosting and industrial applications.

Corrosion resistant

High-quality AISI 304 stainless steel, inside and out, makes the SP pump extremely corrosion-resistant.

Right solution

The SP submersible pump is available in many variants and sizes and can be adapted to the specific application.

Reverse throttle valve

Its built-in non-return valve minimizes the risk of water shock damage.

Instructions

Technical Specifications

Maximum flow [l/min]
190
Maximum head [m]
83
Input voltage [V]
3x400
Power output - P2 [kW]
3
Delivery port ["]
2
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
7.85
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal
