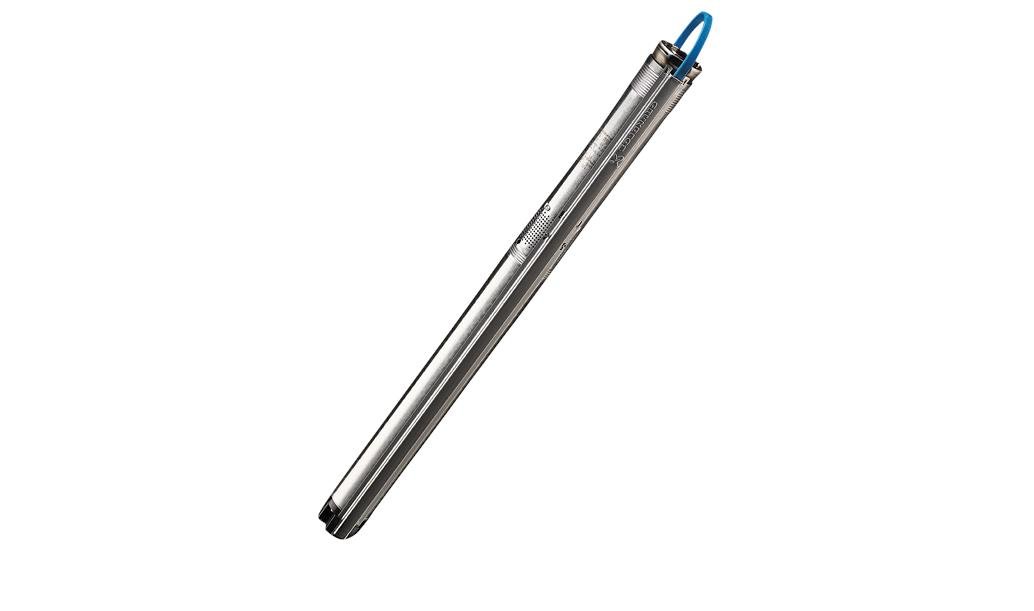

GRUNDFOS SQE 3 pressure booster pump with el.regulation

GRUNDFOS SQE 3 pressure booster pump with el.regulation

Grundfos SQE pumps are compact submersible pumps, designed for constant pressure applications within domestic groundwater supply for private housing, small waterworks, and small irrigation systems See more

Technical Specifications

Maximum flow [l/min]
66
Maximum head [m]
90 - 150
Input voltage [V]
230
Power output - P2 [kW]
1.15 - 1.85

Show all Tech Specs

from 2,112.50 VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Submersible borehole pumps for domestic use
Product No.:
MAS000542

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Vessel volume [l]
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos SQE3-65 40m cable, pressure booster pump with el.regulation

Product No.: ZB00002456 Sale group: CEGJ1 EAN: 5700396932651 Manuf. No.: 96524501

2,112.50 €

Maximum flow [l/min]
66
Maximum head [m]
90
Input voltage [V]
230
Power output - P2 [kW]
1.15
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Vessel volume [l]
8
Float switch
NO
Maximum current [A]
8.40
Maximum liquid temperature [°C]
30
Cable length [m]
40
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
YES
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
with frequency converter

Grundfos SQE3-105 80m cable, pressure booster pump with el.regulation

Product No.: ZB00002600 Sale group: CEGJ1 EAN: 5700396932729 Manuf. No.: 96524508

2,576.64 €

Maximum flow [l/min]
66
Maximum head [m]
150
Input voltage [V]
230
Power output - P2 [kW]
1.85
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Vessel volume [l]
8
Float switch
NO
Maximum current [A]
12.30
Maximum liquid temperature [°C]
30
Cable length [m]
80
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
YES
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
with frequency converter

Product description

Get intelligent constant pressure with the SQE submersible groundwater pump

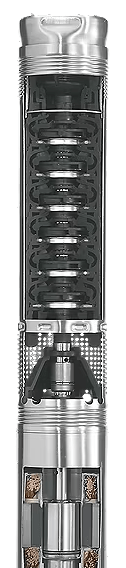

The SQE submersible groundwater pump is one of the most advanced submersible pump solutions for domestic applications. Equipped with a permanent magnet motor and a built-in variable speed drive, it enables performance adjustments by means of communication with an external control box.

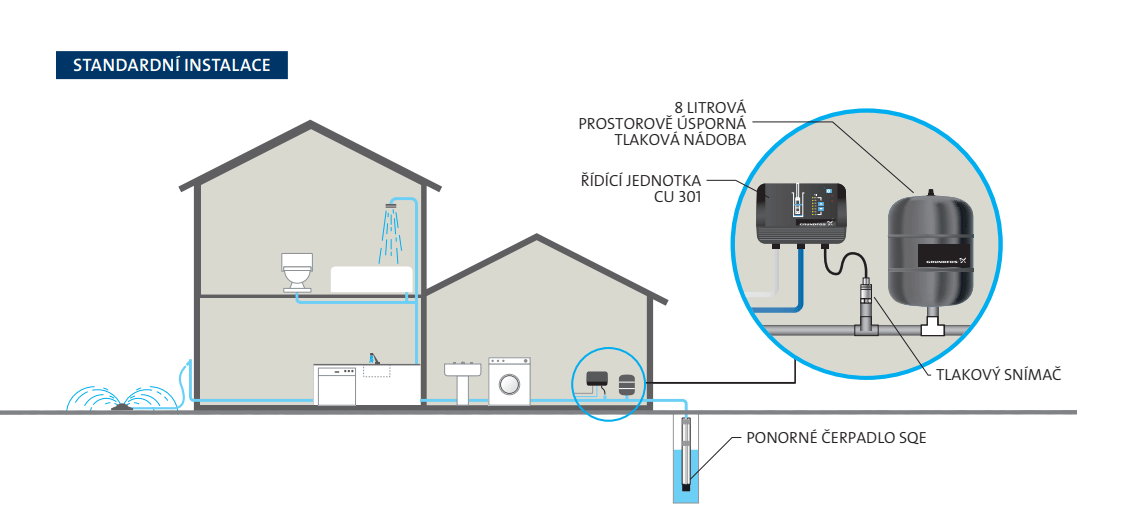

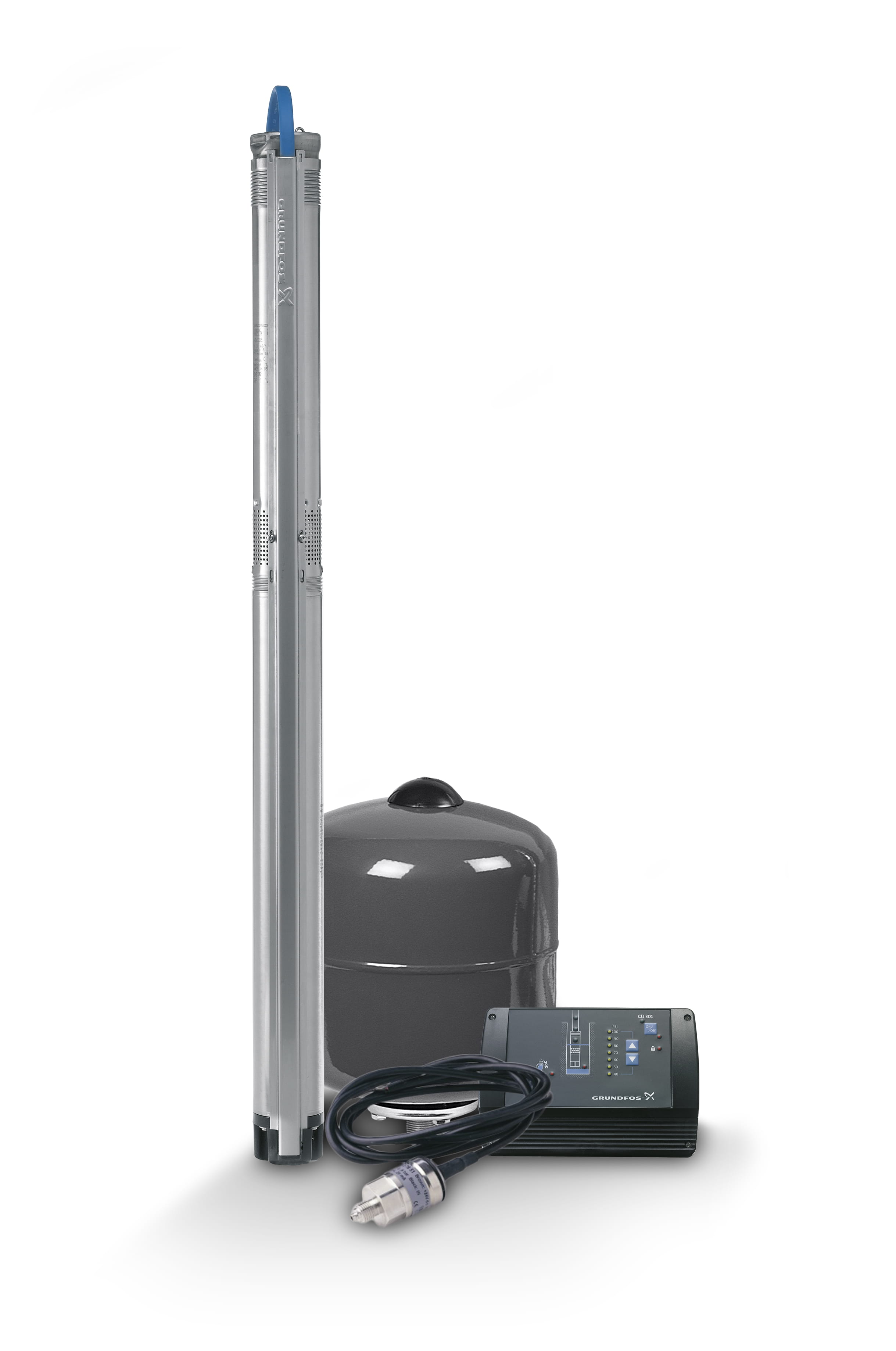

SQE features a variable speed drive, which helps the pump to automatically adjust itself to ensure constant water pressure regardless of changing demands, eliminating weak or fluctuating water supply and improving comfort. SQE is provided as an all-in-one box solution, easy to both install and operate. It is suitable for continuous and intermittent operation for a variety of applications, including groundwater supply and pressure boosting.

Constant pressure provides more comfort

Thanks to the built-in variable speed drive, SQE delivers constant water pressure regardless of the number of opened taps. This increases homeowner comfort.

Its soft start feature minimises the risk of pump wear and reduces the occurrence of water hammer in the pipes, resulting in an increase of the overall lifetime of your SQE.

SQE has a very wide supply voltage range which reduces the risk of overheating the motor, improving your peace of mind.

Technical Specifications

Maximum flow [l/min]
66
Maximum head [m]
90 - 150
Input voltage [V]
230
Power output - P2 [kW]
1.15 - 1.85
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Vessel volume [l]
8
Float switch
NO
Maximum current [A]
8.40 - 12.30
Maximum liquid temperature [°C]
30
Cable length [m]
40 - 80
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
YES
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
with frequency converter
