PUMPA blue line 3SKM submersible borehole pump 230V

previous next

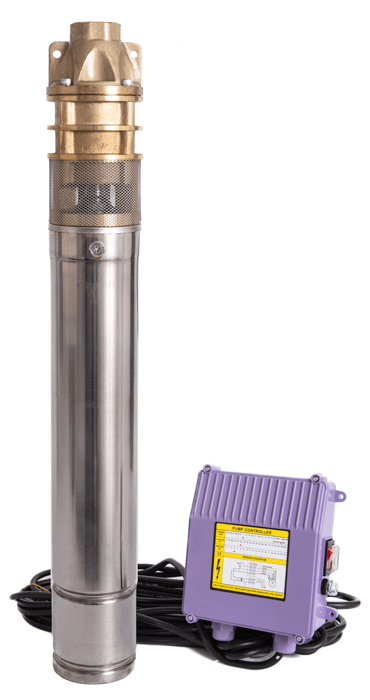

PUMPA blue line 3SKM submersible borehole pump 230V

Submersible 3" pump for wells and boreholes for pumping clean water, irrigation. Stainless steel shaft, casing and hydraulics, brass impeller Maximum draught 40 m. See more

Technical Specifications

Maximum flow [l/min]
40
Maximum head [m]
57 - 73
Input voltage [V]
230
Power output - P2 [kW]
0.75 - 1.10

Show all Tech Specs

in stock >100 pcs

from 182.98 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS000039

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA blue line 3SKM 100 230V submersible pump, cable 25m, switch box

Product No.: ZB00001039 Sale group: CEBL EAN: 8596455000679

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

182.98 €

Maximum flow [l/min]
40
Maximum head [m]
57
Input voltage [V]
230
Power output - P2 [kW]
0.75
Delivery port ["]
1
Pump diameter ["]
3
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
5
Maximum liquid temperature [°C]
35
Cable length [m]
25
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
75
Impeller material
brass
Construction
centrifugal

PUMPA blue line 3SKM 150 230V submersible pump, cable 30m, switch box

Product No.: ZB00048409 Sale group: CEBL EAN: 8596455000747

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

203.72 €

Maximum flow [l/min]
40
Maximum head [m]
73
Input voltage [V]
230
Power output - P2 [kW]
1.10
Delivery port ["]
1
Pump diameter ["]
3
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
6.20
Maximum liquid temperature [°C]
35
Cable length [m]
30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
75
Impeller material
brass
Construction
centrifugal

Product description

Use of the pump PUMPA blue line 3SKM

  • For boreholes from 125 mm
  • Pumping clean water into the household
  • Water circulation in fountains
  • Rainwater irrigation
  • Power supply for pressure systems
  • Filling and emptying tanks

Instructions

Technical Specifications

Maximum flow [l/min]
40
Maximum head [m]
57 - 73
Input voltage [V]
230
Power output - P2 [kW]
0.75 - 1.10
Delivery port ["]
1
Pump diameter ["]
3
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
5 - 6.20
Maximum liquid temperature [°C]
35
Cable length [m]
25 - 30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
75
Impeller material
brass
Construction
centrifugal
