PUMPA blue line 4SKM submersible borehole pump 230V

previous next

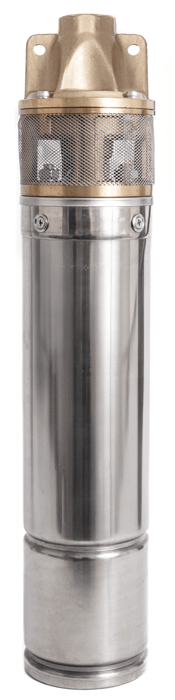

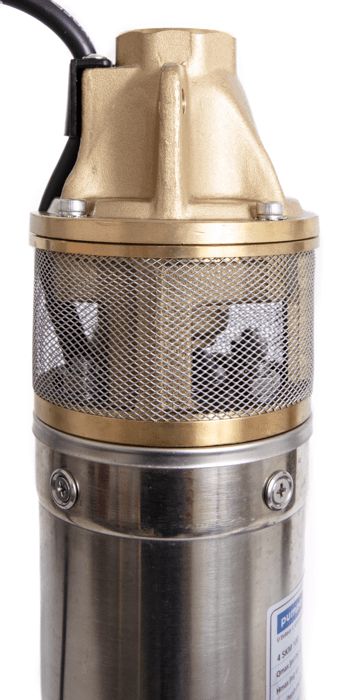

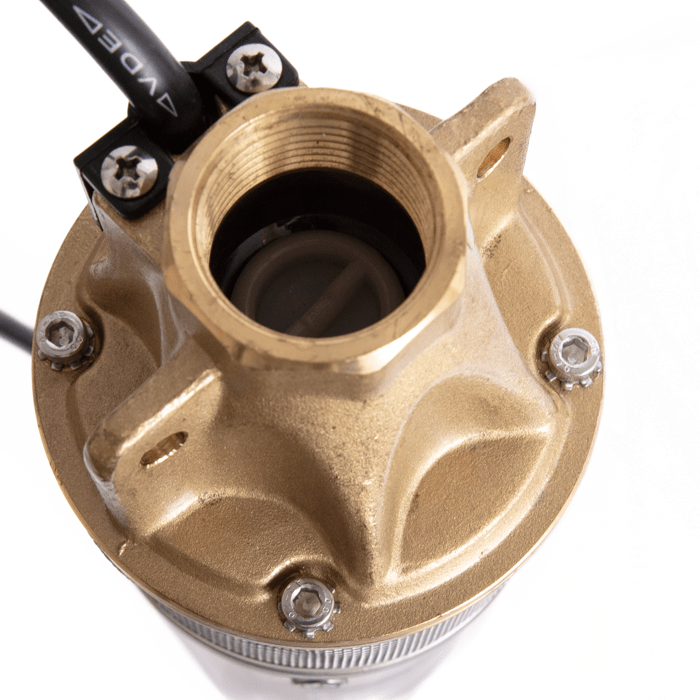

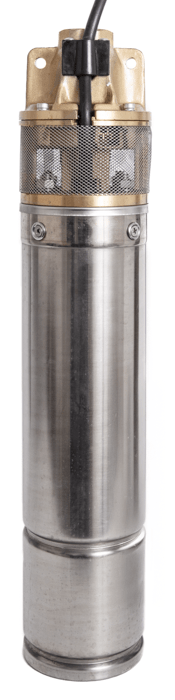

PUMPA blue line 4SKM submersible borehole pump 230V

Submersible 4" pump for wells and boreholes for pumping clean water, irrigation. Stainless steel shaft, casing and hydraulics, brass impeller Maximum draught 40 m. See more

Technical Specifications

Maximum flow [l/min]
42 - 58
Maximum head [m]
61 - 140
Input voltage [V]
230
Power output - P2 [kW]
0.75 - 1.50

Show all Tech Specs

in stock >100 pcs

from 165.59 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS000040

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

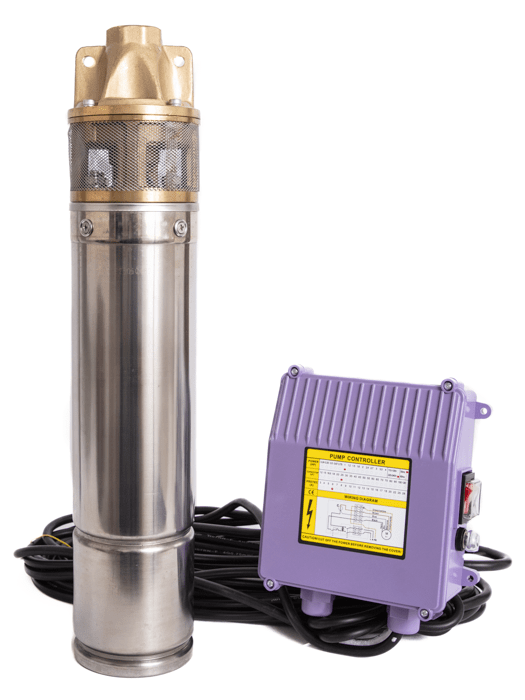

PUMPA blue line 4SKM 100 230V submersible pump, cable 15m, switch box

Product No.: ZB00001036 Sale group: CEBL EAN: 8596455000648

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

165.59 €

Maximum flow [l/min]
42
Maximum head [m]
61
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
27
Rated head [m]
40
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
5.20
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
93
Impeller material
brass
Construction
centrifugal

PUMPA blue line 4SKM 100 230V submersible pump, cable 20m, switch box

Product No.: ZB00001144 Sale group: CEBL EAN: 8596455000709

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

168.99 €

Maximum flow [l/min]
42
Maximum head [m]
61
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
27
Rated head [m]
40
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
5.20
Maximum liquid temperature [°C]
35
Cable length [m]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
93
Impeller material
brass
Construction
centrifugal

PUMPA blue line 4SKM 100 230V submersible pump, cable 25m, switch box

Product No.: ZB00048408 Sale group: CEBL EAN: 8596455000730

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

172.39 €

Maximum flow [l/min]
42
Maximum head [m]
61
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
27
Rated head [m]
40
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
5.20
Maximum liquid temperature [°C]
35
Cable length [m]
25
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
93
Impeller material
brass
Construction
centrifugal

PUMPA blue line 4SKM 150 230V submersible pump, cable 25m, switch box

Product No.: ZB00001037 Sale group: CEBL EAN: 8596455000655

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

199.93 €

Maximum flow [l/min]
42
Maximum head [m]
99
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
27
Rated head [m]
64
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
8.70
Maximum liquid temperature [°C]
35
Cable length [m]
25
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
93
Impeller material
brass
Construction
centrifugal

PUMPA blue line 4SKM 150 230V submersible pump, cable 30m, switch box

Product No.: ZB00048410 Sale group: CEBL EAN: 8596455000754

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

203.33 €

Maximum flow [l/min]
42
Maximum head [m]
99
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
27
Rated head [m]
64
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
8.70
Maximum liquid temperature [°C]
35
Cable length [m]
30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
93
Impeller material
brass
Construction
centrifugal

PUMPA blue line 4SKM 200 230V submersible pump, cable 30m, switch box

Product No.: ZB00001038 Sale group: CEBL EAN: 8596455000662

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

264.53 €

Maximum flow [l/min]
58
Maximum head [m]
140
Input voltage [V]
230
Power output - P2 [kW]
1.50
Rated flow [l/m]
37
Rated head [m]
91
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
12.60
Maximum liquid temperature [°C]
35
Cable length [m]
30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
93
Impeller material
brass
Construction
centrifugal

Product description

Use of the pump PUMPA blue line 4SKM

  • For boreholes from 125 mm
  • Pumping clean water into the household
  • Water circulation in fountains
  • Rainwater irrigation
  • Power supply for pressure systems
  • Filling and emptying tanks

Instructions

Technical Specifications

Maximum flow [l/min]
42 - 58
Maximum head [m]
61 - 140
Input voltage [V]
230
Power output - P2 [kW]
0.75 - 1.50
Rated flow [l/m]
27 - 37
Rated head [m]
40 - 91
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
40
Drinking water certificate
NO
Maximum current [A]
5.20 - 12.60
Maximum liquid temperature [°C]
35
Cable length [m]
15 - 30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
93
Impeller material
brass
Construction
centrifugal
