PUMPA blue line PMC1204PA Garden Submersible Automatic Pump
PUMPA blue line PMC1204PA Garden Submersible Automatic Pump

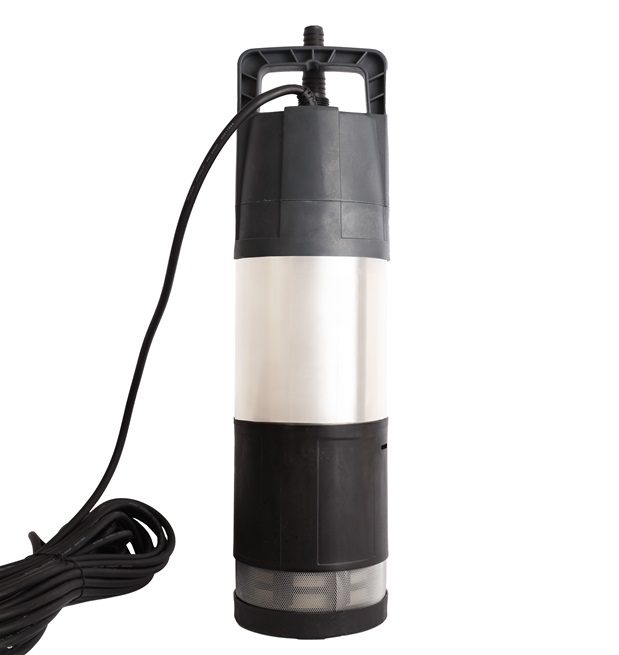

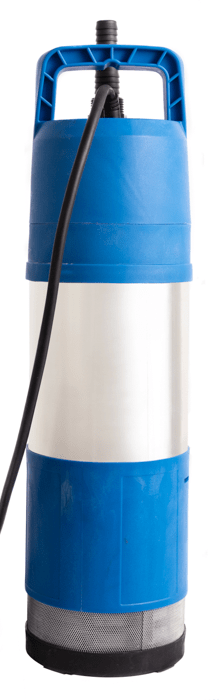

The PUMPA blue line PMC1204PA multistage automatic submersible garden pump with stainless steel casing is designed for pumping clean or slightly polluted water in households, gardens for irrigation and for pumping water from a well or a retention tank, at a pumped liquid temperature not exceeding 35 °C. The PUMPA blue line PMC1204PA is equipped with an integrated control unit that ensures automatic operation of the pump. The pump has the ability to pump water 50 mm from the bottom. Supplied with 12m cable. The pump reaches a maximum discharge height of up to 50m and the pump has a maximum submersion depth of 8m.
Technical Specifications
- Maximum flow [l/min]
- 95
- Maximum head [m]
- 50
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.84
212.26 € VAT included
- Brand:
- PUMPA
- Category:
- Submersible pumps
- Product No.:
- MAS001647
Product variants
-
- PUMPA blue line PMC1204PA 230V automatic garden submersible pump
- ZB00072021
- 95
- 50
- 230
- 0,84
- 1,20
- 1
- 8
- NO
- NO
- 5,70
- 35
- 2,5
- 12
- 68
- YES
- YES
- NO
- NO
- integrated
- 150
- noryl
- fully intergrated, compact pressure booster
-
Product availability
- central warehouse >100 pcs
- 212.26 €
Variant Product No.
Availability
Price (VAT incl.)
PUMPA blue line PMC1204PA 230V automatic garden submersible pump
Product No.: ZB00072021 Sale group: CEBL EAN: 8596455042433
212.26 €
- Maximum flow [l/min]
- 95
- Maximum head [m]
- 50
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0,84
- Power input - P1 [kW]
- 1,20
- Delivery port ["]
- 1
- Maximum immersion depth [m]
- 8
- Drinking water certificate
- NO
- Float switch
- NO
- Maximum current [A]
- 5,70
- Maximum liquid temperature [°C]
- 35
- Start pressure [bar]
- 2,5
- Cable length [m]
- 12
- Protection [IP]
- 68
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 150
- Impeller material
- noryl
- Construction
- fully intergrated, compact pressure booster
Product description
The PUMPA blue line PMC1204PA multistage automatic submersible garden pump with stainless steel casing is designed for pumping clean or slightly polluted water in households, gardens for irrigation and for pumping water from a well or a retention tank, at a pumped liquid temperature not exceeding 35 °C. The PUMPA blue line PMC1204PA is equipped with an integrated control unit that ensures automatic operation of the pump. The control unit automatically controls the switching on and off (ON/OFF) of the pump depending on the user's water demand and protects the pump against running dry in the event of running out of water.

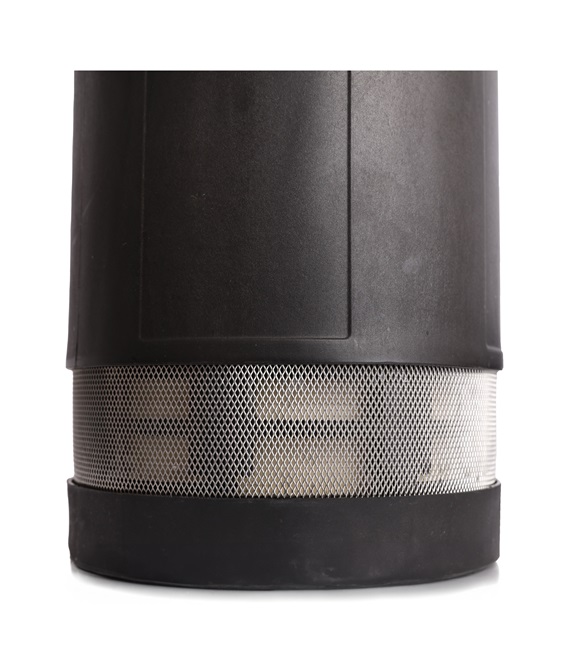

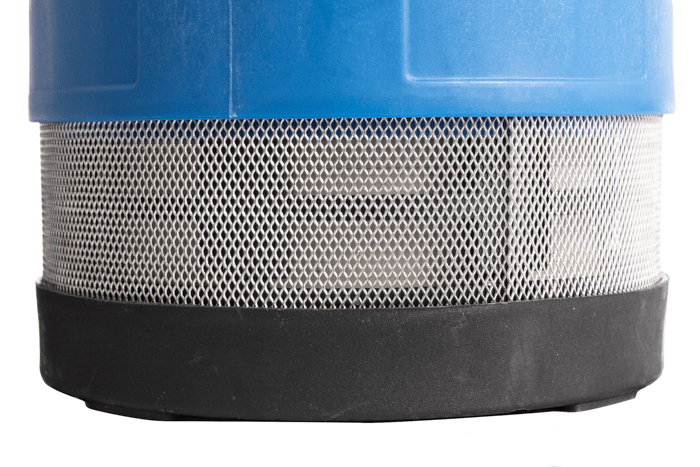

The pump has the ability to pump water 50 mm from the bottom. Supplied with 12m cable. The pump reaches a maximum discharge height of up to 50m and the maximum depth of submersion of the pump is 8m.
Application
- for pumping clean or slightly polluted water
- for pumping water from wells
- for pumping rainwater from retention tanks
- for domestic water supply
- for irrigation in gardens, for pumping storage tanks
- for draining swimming pools
The pump is not intended for drip irrigation.
