PUMPA
PUMPA e-line E-DRIVE PHF PICOLA pressure booster pump with frequency converter
PUMPA e-line E-DRIVE PHF PICOLA pressure booster pump with frequency converter
Technical Specifications
- Maximum flow [l/min]
- 83.30
- Maximum head [m]
- 45
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.58
431.40 € VAT included
- Brand:
- PUMPA
- Category:
- Pressure booster pumps with frequency convertor
- Product No.:
- MAS001612
Product variants
-
- PUMPA e-line E-DRIVE PHF PICOLA 2 230V, 50Hz, 0,58kW in-line automatic pressure booster pump with frequency converter and permanent magnet
- ZB00070842
- 83.30
- 45
- 230
- 0.58
- 1
- 1
- 4
- NO
- NO
- 3.50
- 70
- 8
- 1.20
- 0.20
- YES
- YES
- YES
- integrated
- noryl
- with frequency converter
-
Product availability
- central warehouse >10 pcs
- 431.40 €
Variant Product No.
Availability
Price (VAT incl.)
PUMPA e-line E-DRIVE PHF PICOLA 2 230V, 50Hz, 0,58kW in-line automatic pressure booster pump with frequency converter and permanent magnet
Product No.: ZB00070842 Sale group: CECA EAN: 8596455041023
431.40 €
- Maximum flow [l/min]
- 83.30
- Maximum head [m]
- 45
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.58
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Pump diameter ["]
- 4
- Drinking water certificate
- NO
- Float switch
- NO
- Maximum current [A]
- 3.50
- Maximum liquid temperature [°C]
- 70
- Maximum pressure [bar]
- 8
- Cable length [m]
- 1.20
- Maximum particle size [mm]
- 0.20
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- noryl
- Construction
- with frequency converter
Product description
No more worries about low water pressure! Introducing the PUMPA e-line E-DRIVE PHF PICOLA automatic home water pump with frequency converter and permanent magnet motor. This home watermaker is the solution to your everyday low water pressure problems. The watermaker is equipped with an intelligent control unit, touch screen display, stainless steel surface and durable connectors, ensuring convenient and easy use. Its compact size, light weight and unique appearance make it suitable for any space.
Use
For increasing the pressure when pumping water from the tap line.
Benefits
Constant water pressure: Enjoy constant water pressure in your home.
Energy Saving: Thanks to the permanent magnet motor and intelligent power control, it significantly reduces energy consumption.
Compact design: thanks to its compactness, the watermaker fits easily into any space (dimensions 270 x 94 mm x 88 mm)
Low noise: Enjoy comfort without disturbing noise. Our pump operates at a low noise level during normal operation, so your home remains a quiet and peaceful place.

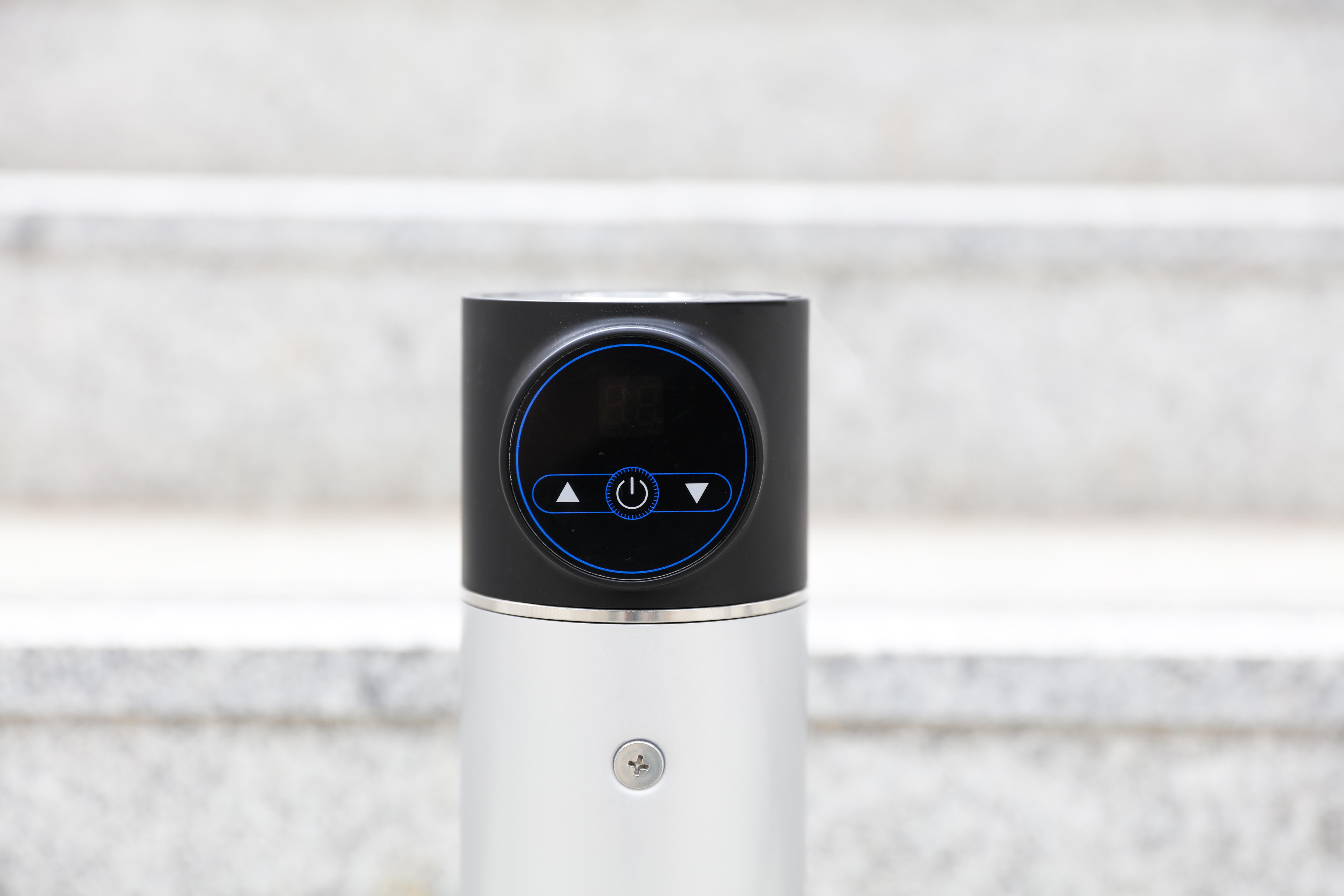

Easy to use: the touchscreen display makes operation simple and intuitive.
Durability and longevity: 304 stainless steel surface and durable connectors ensure a long life of the device.
Intelligent control: self-monitoring, fault indication and remote maintenance via Bluetooth 5.2 and mobile app provide maximum convenience and safety.
The package contains
- PUMPA e-line E-DRIVE PHF PICOLA
- Fixing clip
- Fixing bracket
- Screws and dowels
- Fittings
- Fittings with non-return valve
Technical Specifications
- Maximum flow [l/min]
- 83.30
- Maximum head [m]
- 45
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.58
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Pump diameter ["]
- 4
- Drinking water certificate
- NO
- Float switch
- NO
- Maximum current [A]
- 3.50
- Maximum liquid temperature [°C]
- 70
- Maximum pressure [bar]
- 8 - 8
- Cable length [m]
- 1.20
- Maximum particle size [mm]
- 0.20
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- noryl
- Construction
- with frequency converter
