PUMPA

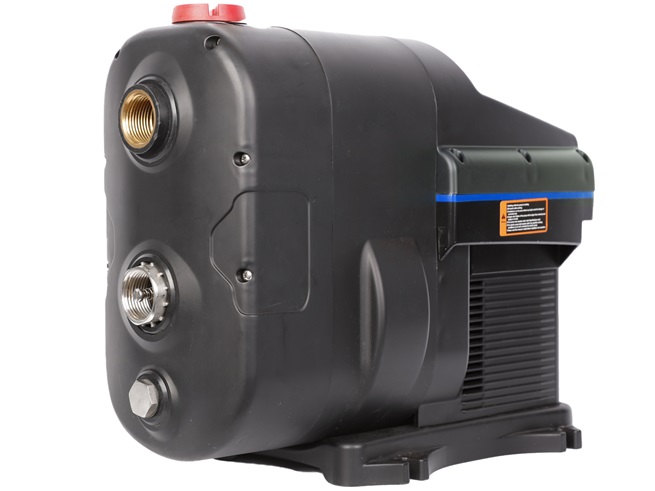

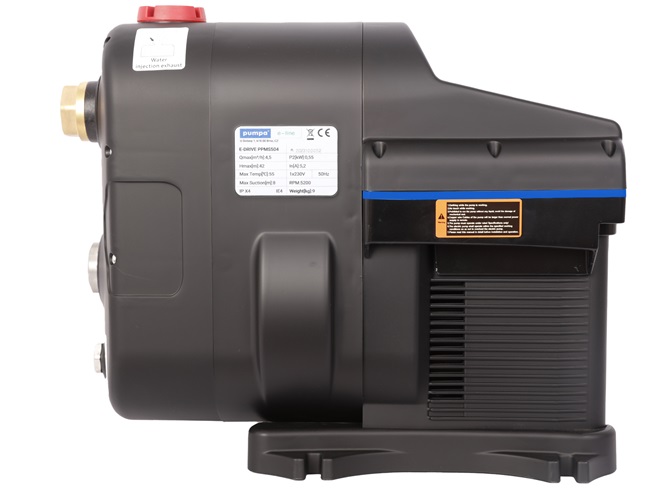

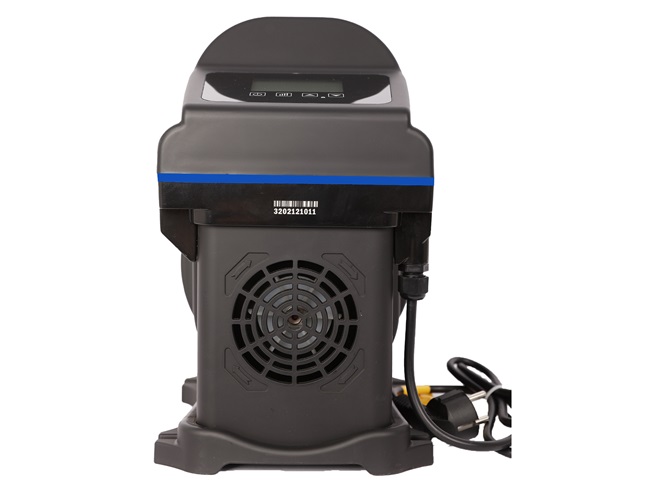

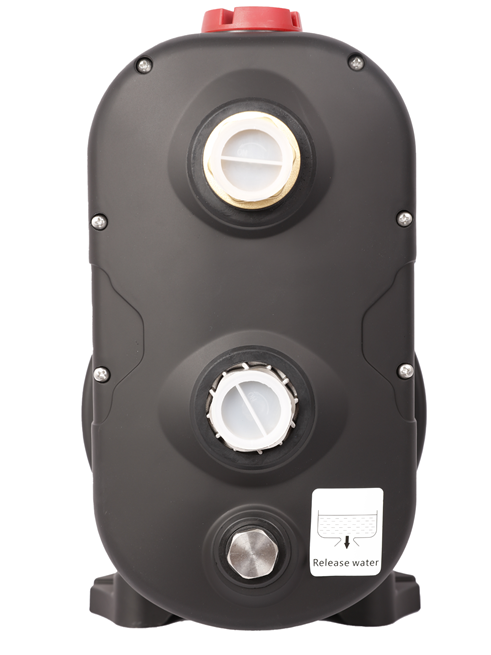

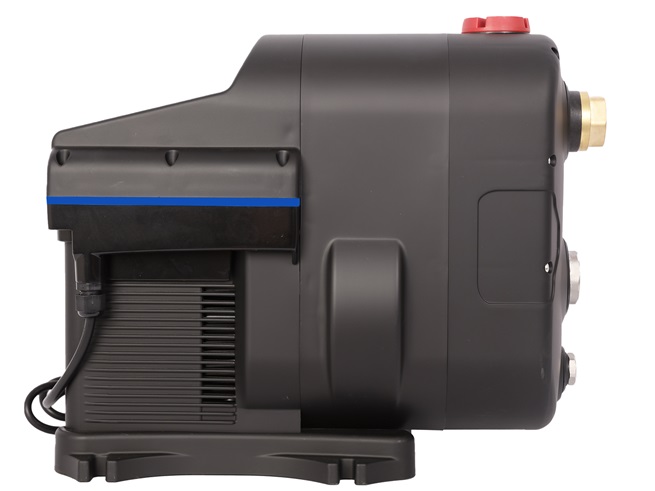

PUMPA e-line E-DRIVE PPMS504 50Hz 230V 0.55kW water plant with frequency converter
No more worrying about fluctuating water pressure! We present to you the automatic pressure booster pump PUMPA E-LINE E-DRIVE PPMS with frequency converter, with integrated pressure vessel, pressure sensor and non-return valve. PPMS automatically adjusts performance according to your current water supply needs and is suitable for boosting pressure when pumping clean water from wells or reservoirs. Thanks to its compact design, it easily fits into any space, and thanks to its permanent magnet motor technology and intelligent power regulation, it significantly reduces energy consumption.
Technical Specifications
- Maximum flow [l/min]
- 75
- Maximum head [m]
- 42
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55
- Brand:
- PUMPA
- Category:
- Pressure booster pumps with frequency convertor
- Product No.:
- ZB00071050
- Sale group:
- CECA
- EAN:
- 8596455040484
Product variants
-
- PUMPA e-line E-DRIVE PPMS504 50Hz 230V 0.55kW water plant with frequency converter
- ZB00071050
- 75
- 42
- 230
- 0.55
- 1
- 1
- 8
- NO
- 1
- NO
- 5.20
- 55
- 10
- 1
- 0.20
- X4
- YES
- YES
- YES
- YES
- integrated
- noryl
- with frequency converter
-
Product availability
- central warehouse >50 pcs
- 431.40 €
Variant Product No.
Availability
Price (VAT incl.)
PUMPA e-line E-DRIVE PPMS504 50Hz 230V 0.55kW water plant with frequency converter
Product No.: ZB00071050 Sale group: CECA EAN: 8596455040484
431.40 €
- Maximum flow [l/min]
- 75
- Maximum head [m]
- 42
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 8
- Drinking water certificate
- NO
- Vessel volume [l]
- 1
- Float switch
- NO
- Maximum current [A]
- 5.20
- Maximum liquid temperature [°C]
- 55
- Maximum pressure [bar]
- 10
- Cable length [m]
- 1
- Maximum particle size [mm]
- 0.20
- Protection [IP]
- X4
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- noryl
- Construction
- with frequency converter
Product description
No more worrying about fluctuating water pressure! We present to you the automatic pressure booster pump PUMPA E-LINE E-DRIVE PPMS with frequency converter, with integrated pressure vessel, pressure sensor and non-return valve. PPMS automatically adjusts performance according to your current water supply needs and is suitable for boosting pressure when pumping clean water from wells or reservoirs. Thanks to its compact design, it easily fits into any space, and thanks to its permanent magnet motor technology and intelligent power regulation, it significantly reduces energy consumption.
Use of E-LINE E-DRIVE PPMS PUMP
- for pumping clean water from wells and reservoirs
- for gardens and irrigation
- for increasing the pressure when pumping water from the water supply line, from tanks incl.rainwater tanks and wells
Advantages of the E-LINE E-DRIVE PPMS PUMP
- Constant water pressure: Enjoy constant water pressure in your home, regardless of how many taps are currently running.
- Energy saving: Thanks to the permanent magnet motor and intelligent power regulation, it significantly reduces energy consumption.
- Compact design: Thanks to its compactness, the water plant can easily fit into any space.
- Low noise: Enjoy comfort without disturbing noise. Our pump operates at a noise level of 50 dB(A) during normal operation, so your home remains a calm and quiet place
- Easy operation and safety: With integrated protections against dry running, overload and rotor lock, together with soft start and motor stop, maximum safety and easy operation are ensured.
- Versatile use: Ideal for pumping clean water from wells and reservoirs, watering gardens, or increasing water pressure in the home.
Instructions
Technical Specifications
- Maximum flow [l/min]
- 75
- Maximum head [m]
- 42
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 8
- Drinking water certificate
- NO
- Vessel volume [l]
- 1
- Float switch
- NO
- Maximum current [A]
- 5.20
- Maximum liquid temperature [°C]
- 55
- Maximum pressure [bar]
- 10
- Cable length [m]
- 1
- Maximum particle size [mm]
- 0.20
- Protection [IP]
- X4
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- noryl
- Construction
- with frequency converter
