PUMPA inox line CDP centrifugal pumps with one impeller 3x400V PUMPA inox line CDP centrifugal pumps with one impeller 3x400V PUMPA inox line CDP centrifugal pumps with one impeller 3x400V PUMPA inox line CDP centrifugal pumps with one impeller 3x400V PUMPA inox line CDP centrifugal pumps with one impeller 3x400V PUMPA inox line CDP centrifugal pumps with one impeller 3x400V PUMPA inox line CDP centrifugal pumps with one impeller 3x400V PUMPA inox line CDP centrifugal pumps with one impeller 3x400V PUMPA inox line CDP centrifugal pumps with one impeller 3x400V PUMPA inox line CDP centrifugal pumps with one impeller 3x400V
PUMPA inox line CDP centrifugal pumps with one impeller 3x400V

Centrifugal pumps with one impeller PUMPA INOX LINE CDP. The hydraulic part of the pumps is made entirely of high-quality AISI304 stainless steel. The pumps are suitable for industrial use. They are used for water supply, pressure boosting, irrigation, food processing, circulation and cooling systems.   See more

Technical Specifications

Maximum flow [l/min]
110 - 250
Maximum head [m]
20 - 39
Input voltage [V]
3x400
Power output - P2 [kW]
0.55 - 2.20

Show all Tech Specs

in stock >100 pcs

from 304.92 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Horizontal surface pumps
Product No.:
MAS001714

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Power input - P1 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Maximum pressure [bar]
  • Protection [IP]
  • Output voltage [V]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

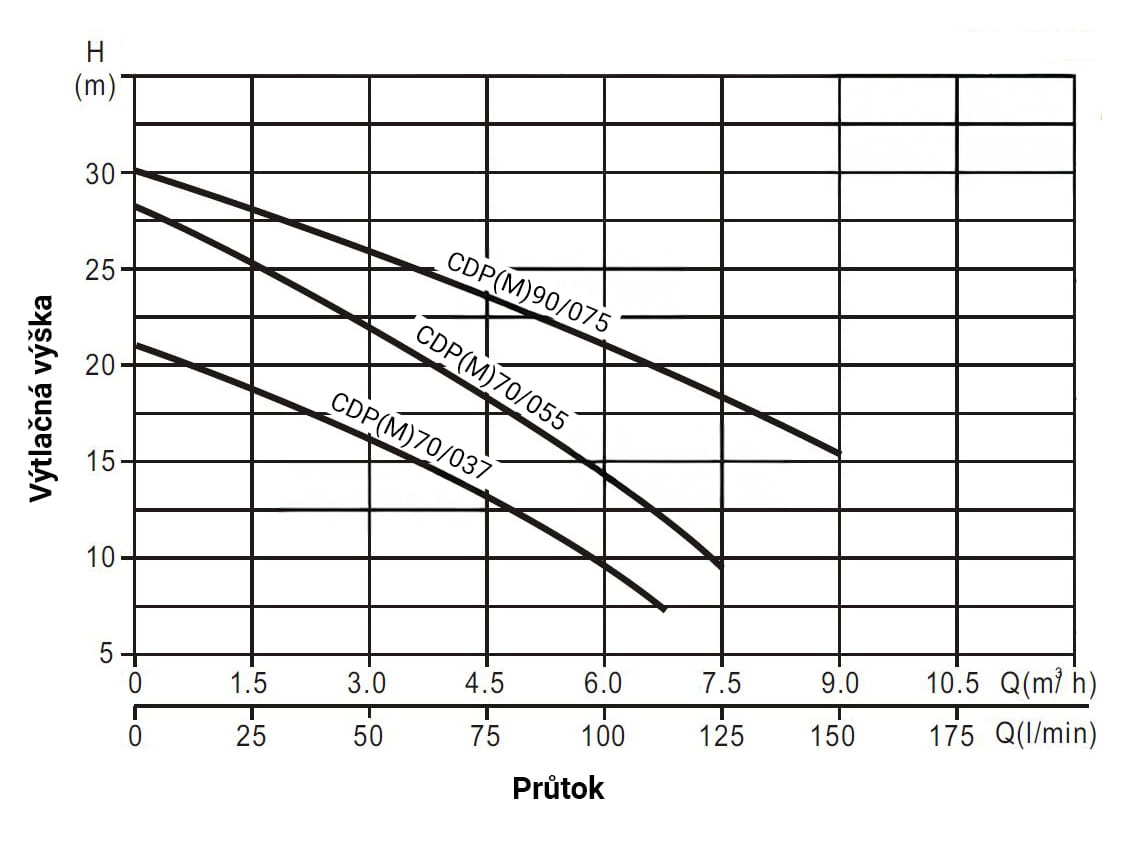

PUMPA INOX LINE CDP70/037 0.55 kW 400 V/50 Hz surface pump

Product No.: ZB00075615 Sale group: CESTP EAN: 8596455044512

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

304.92 €

Maximum flow [l/min]
110
Maximum head [m]
20
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Suction port ["]
5/4
Power input - P1 [kW]
0.75
Rated flow [l/m]
70
Rated head [m]
14
Delivery port ["]
5/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
1.30
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

PUMPA INOX LINE CDP70/055 0.75 kW 400 V/50 Hz surface pump

Product No.: ZB00075617 Sale group: CESTP EAN: 8596455044536

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

331.30 €

Maximum flow [l/min]
110
Maximum head [m]
28
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Suction port ["]
5/4
Power input - P1 [kW]
1.04
Rated flow [l/m]
70
Rated head [m]
19
Delivery port ["]
5/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
1.60
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

PUMPA INOX LINE CDP90/075 1kW 400V/50Hz surface pump

Product No.: ZB00075619 Sale group: CESTP EAN: 8596455044550

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

361.55 €

Maximum flow [l/min]
150
Maximum head [m]
30
Input voltage [V]
3x400
Power output - P2 [kW]
1
Suction port ["]
5/4
Power input - P1 [kW]
1.39
Rated flow [l/m]
90
Rated head [m]
22
Delivery port ["]
5/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
2.10
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

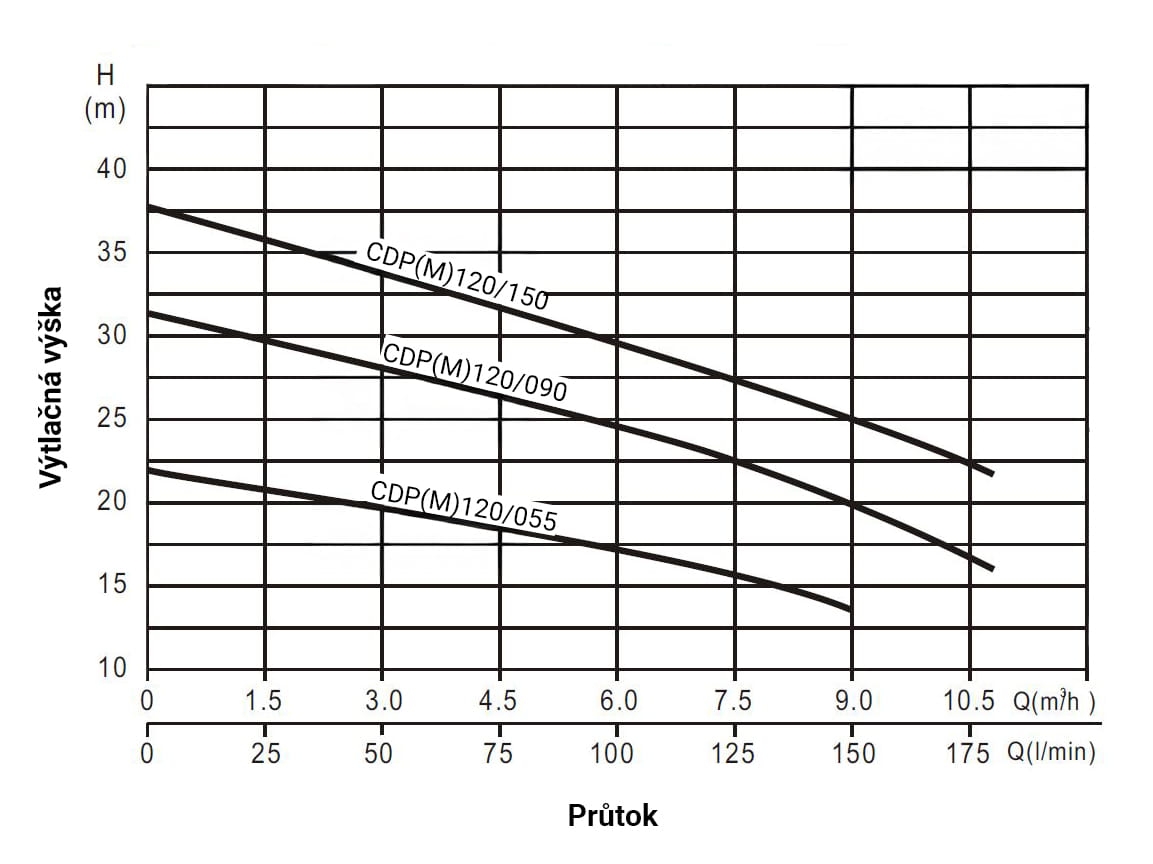

PUMPA INOX LINE CDP120/055 0.75 kW 400 V/50 Hz surface pump

Product No.: ZB00075621 Sale group: CESTP EAN: 8596455044574

in stock
8 pcs
Product availability
  • central warehouse 8 pcs

332.80 €

Maximum flow [l/min]
160
Maximum head [m]
22
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Suction port ["]
5/4
Power input - P1 [kW]
1.04
Rated flow [l/m]
120
Rated head [m]
16
Delivery port ["]
5/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
1.60
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

PUMPA INOX LINE CDP120/090 1.1kW 400V/50Hz surface pump

Product No.: ZB00075623 Sale group: CESTP EAN: 8596455044598

in stock
9 pcs
Product availability
  • central warehouse 9 pcs

393.01 €

Maximum flow [l/min]
180
Maximum head [m]
31
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Suction port ["]
5/4
Power input - P1 [kW]
1.50
Rated flow [l/m]
120
Rated head [m]
23
Delivery port ["]
5/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

PUMPA INOX LINE CDP120/150 2.2kW 400V/50Hz surface pump

Product No.: ZB00075625 Sale group: CESTP EAN: 8596455044611

in stock
8 pcs
Product availability
  • central warehouse 8 pcs

556.21 €

Maximum flow [l/min]
200
Maximum head [m]
38
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
5/4
Power input - P1 [kW]
2.25
Rated flow [l/m]
120
Rated head [m]
28
Delivery port ["]
5/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
3.70
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

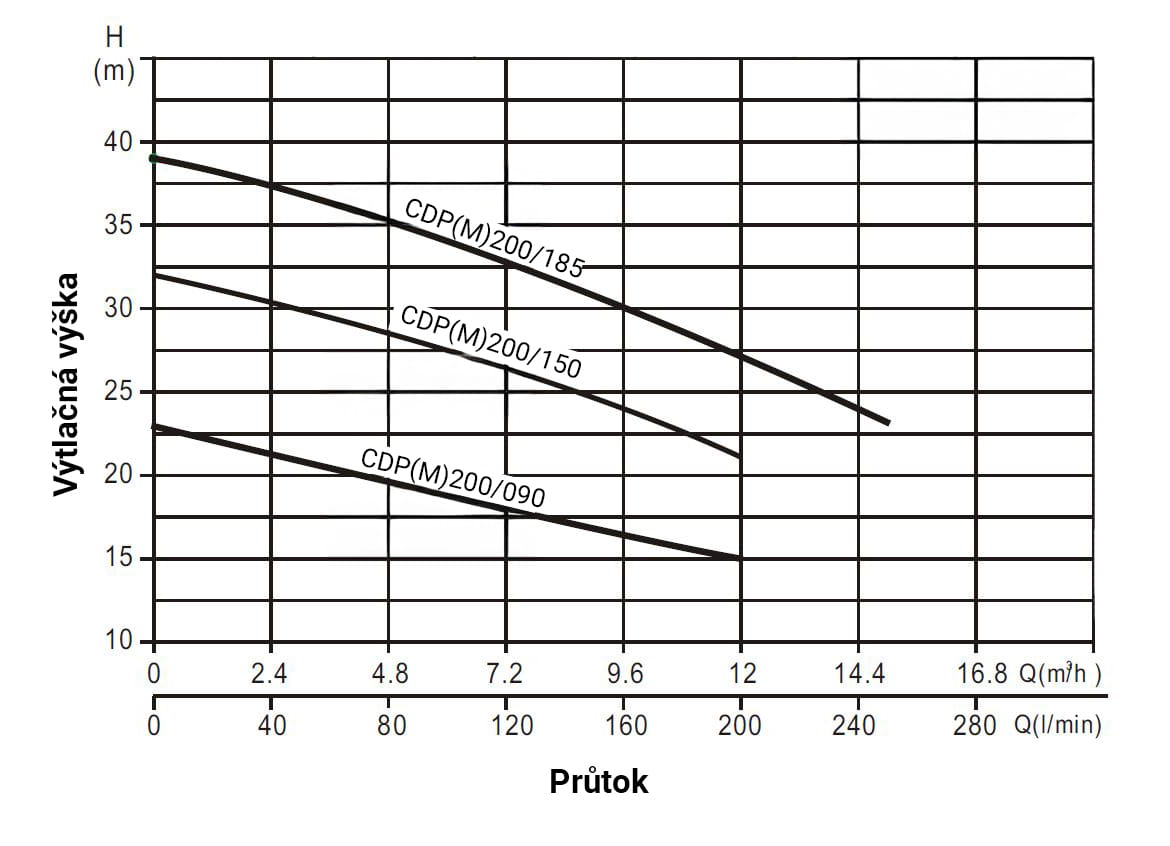

PUMPA INOX LINE CDP200/090 1.1kW 400V/50Hz surface pump

Product No.: ZB00075627 Sale group: CESTP EAN: 8596455044635

in stock
8 pcs
Product availability
  • central warehouse 8 pcs

391.65 €

Maximum flow [l/min]
200
Maximum head [m]
25
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Suction port ["]
6/4
Power input - P1 [kW]
1.50
Rated flow [l/m]
150
Rated head [m]
18
Delivery port ["]
6/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

PUMPA INOX LINE CDP200/150 2.2kW 400V/50Hz surface pump

Product No.: ZB00075629 Sale group: CESTP EAN: 8596455044659

in stock
8 pcs
Product availability
  • central warehouse 8 pcs

542.47 €

Maximum flow [l/min]
225
Maximum head [m]
32
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
6/4
Power input - P1 [kW]
2.25
Rated flow [l/m]
200
Rated head [m]
22
Delivery port ["]
6/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
3.70
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

PUMPA INOX LINE CDP200/185 2.2kW 400V/50Hz surface pump

Product No.: ZB00075631 Sale group: CESTP EAN: 8596455044673

in stock
6 pcs
Product availability
  • central warehouse 6 pcs

554.47 €

Maximum flow [l/min]
250
Maximum head [m]
39
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
6/4
Power input - P1 [kW]
2.80
Rated flow [l/m]
200
Rated head [m]
27
Delivery port ["]
6/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
4.30
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

Product description

Centrifugal pumps with one impeller PUMPA INOX LINE CDP. The hydraulic part of the pumps is made entirely of high-quality AISI304 stainless steel. The pumps are suitable for industrial use. They are used for water supply, pressure boosting, irrigation, food processing, circulation and cooling systems.

Main advantages

  • High efficiency: the pump is equipped with a single impeller, which ensures high discharge and high efficiency
  • Corrosion protection: parts that come into contact with liquids are made of AISI 304 stainless steel
  • Motor: three-phase 3x400V 50Hz
  • Safe and reliable operation: the pump is equipped with a mechanical seal
  • Wide range of applications: industrial and domestic applications

Use

  • Water transport for industrial and domestic applications
  • Pressure boosting in systems
  • Irrigation
  • Cooling and circulation systems
  • Food applications
  • Water treatment
  • Washing lines

Instructions

Technical Specifications

Maximum flow [l/min]
110 - 250
Maximum head [m]
20 - 39
Input voltage [V]
3x400
Power output - P2 [kW]
0.55 - 2.20
Suction port ["]
5/4, 6/4
Power input - P1 [kW]
0.75 - 2.80
Rated flow [l/m]
70 - 200
Rated head [m]
14 - 28
Delivery port ["]
5/4, 6/4
Maximum suction lift [m]
6
Drinking water certificate
NO
Maximum current [A]
1.30 - 4.30
Maximum liquid temperature [°C]
70
Maximum pressure [bar]
10 - 10
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
stainless steel
Construction
centrifugal

Product Safety Information

Company responsible for product safety:
PUMPA,a.s.
U Svitavy 54/1, Brno 618 00, CZ
e-mail: [email protected]
