PUMPA

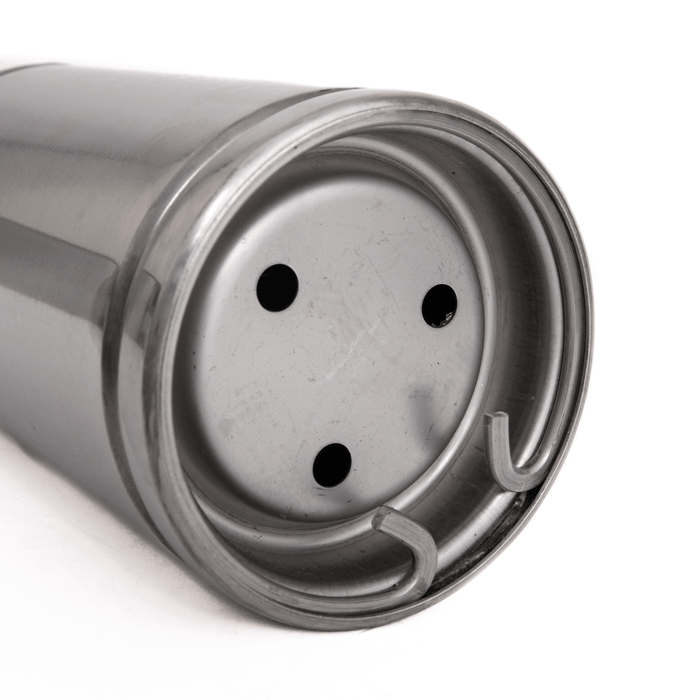

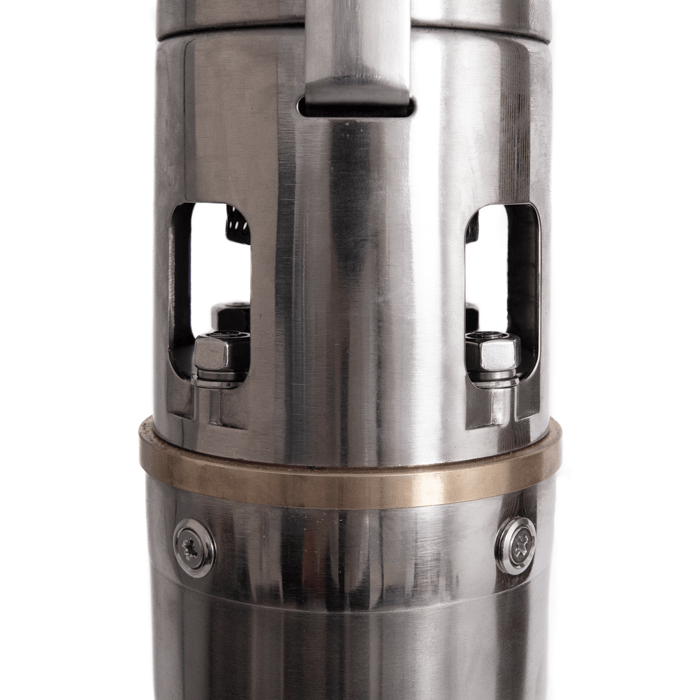

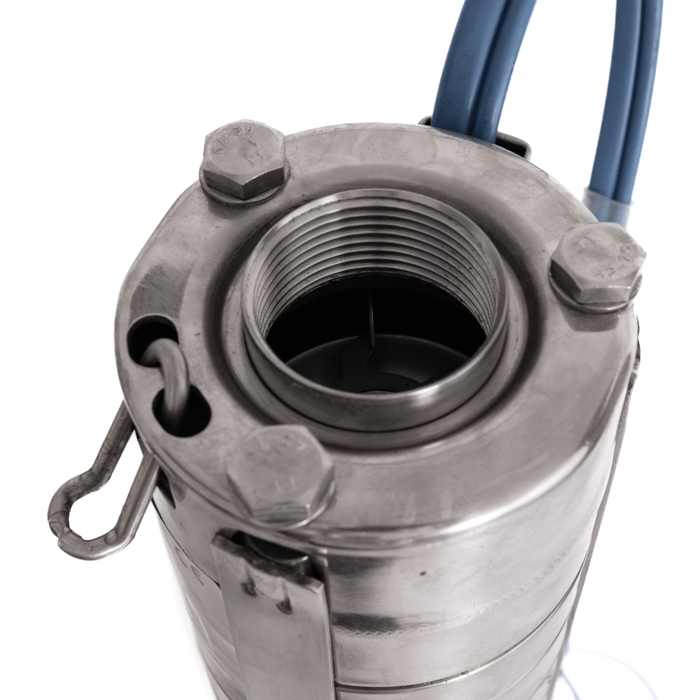

PUMPA inox line SPP-05 4-inch submersible pump 230V 2-wire without switch box, with Franklin Electric motor
PUMPA inox line SPP 4" submersible pumps are developed according to the latest technology. They are made of corrosion and abrasion resistant stainless steel. The SPP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. 230 V - 2-wire without switch box
Technical Specifications
- Maximum flow [l/min]
- 25
- Maximum head [m]
- 102 - 205
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55 - 1.10
from 835.58 € VAT included
- Brand:
- PUMPA
- Category:
- Submersible borehole pumps
- Product No.:
- MAS001025
Product variants
-
- PUMPA inox line SPP-0518 4" 0,55kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m
- ZB00060327
- 25
- 102
- 230
- 0,55
- 15
- 72
- 5/4
- 4
- 150
- YES
- NO
- 5,80
- 30
- 1,70
- 68
- NO
- NO
- NO
- NO
- integrated
- 98
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- available within 5 working days 3 pcs
- 835.58 €
- Check availability
-
- PUMPA inox line SPP-0521 4" 0,55kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m
- ZB00060330
- 25
- 118
- 230
- 0,55
- 15
- 81
- 5/4
- 4
- 150
- YES
- NO
- 5,80
- 30
- 1,70
- 68
- NO
- NO
- NO
- NO
- integrated
- 98
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- available within 5 working days 3 pcs
- 905.50 €
- Check availability
-
- PUMPA inox line SPP-0528 4" 0,75kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m
- ZB00060333
- 25
- 158
- 230
- 0,75
- 15
- 111
- 5/4
- 4
- 150
- YES
- NO
- 7,30
- 30
- 1,70
- 68
- NO
- NO
- NO
- NO
- integrated
- 98
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- available within 5 working days 3 pcs
- 1,055.97 €
- Check availability
-
- PUMPA inox line SPP-0536 4" 1,1kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m
- ZB00060336
- 25
- 205
- 230
- 1,10
- 15
- 134
- 5/4
- 4
- 150
- YES
- NO
- 10,80
- 30
- 1,70
- 68
- NO
- NO
- NO
- NO
- integrated
- 98
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- available within 5 working days 2 pcs
- 1,415.21 €
- Check availability
Variant Product No.
Availability
Price (VAT incl.)
PUMPA inox line SPP-0518 4" 0,55kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m
Product No.: ZB00060327 Sale group: CEST EAN: 8596455018896
835.58 €
- Maximum flow [l/min]
- 25
- Maximum head [m]
- 102
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0,55
- Rated flow [l/m]
- 15
- Rated head [m]
- 72
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 4
- Maximum immersion depth [m]
- 150
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum current [A]
- 5,80
- Maximum liquid temperature [°C]
- 30
- Cable length [m]
- 1,70
- Protection [IP]
- 68
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 98
- Impeller material
- stainless steel
- Construction
- centrifugal
PUMPA inox line SPP-0521 4" 0,55kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m
Product No.: ZB00060330 Sale group: CEST EAN: 8596455018926
905.50 €
- Maximum flow [l/min]
- 25
- Maximum head [m]
- 118
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0,55
- Rated flow [l/m]
- 15
- Rated head [m]
- 81
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 4
- Maximum immersion depth [m]
- 150
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum current [A]
- 5,80
- Maximum liquid temperature [°C]
- 30
- Cable length [m]
- 1,70
- Protection [IP]
- 68
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 98
- Impeller material
- stainless steel
- Construction
- centrifugal
PUMPA inox line SPP-0528 4" 0,75kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m
Product No.: ZB00060333 Sale group: CEST EAN: 8596455018957
1,055.97 €
- Maximum flow [l/min]
- 25
- Maximum head [m]
- 158
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0,75
- Rated flow [l/m]
- 15
- Rated head [m]
- 111
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 4
- Maximum immersion depth [m]
- 150
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum current [A]
- 7,30
- Maximum liquid temperature [°C]
- 30
- Cable length [m]
- 1,70
- Protection [IP]
- 68
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 98
- Impeller material
- stainless steel
- Construction
- centrifugal
PUMPA inox line SPP-0536 4" 1,1kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m
Product No.: ZB00060336 Sale group: CEST EAN: 8596455018988
1,415.21 €
- Maximum flow [l/min]
- 25
- Maximum head [m]
- 205
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1,10
- Rated flow [l/m]
- 15
- Rated head [m]
- 134
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 4
- Maximum immersion depth [m]
- 150
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum current [A]
- 10,80
- Maximum liquid temperature [°C]
- 30
- Cable length [m]
- 1,70
- Protection [IP]
- 68
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 98
- Impeller material
- stainless steel
- Construction
- centrifugal
Product description
Application
- Drinking water supply of residential buildings from deep drilled wells
- Utility and industrial water supply
- Irrigation and other agricultural applications
- Fire protection systems
- Pressure amplification in high-rise buildings
- Other applications
Characteristics
- Stainless steel construction developed and manufactured to provide many years of fault-free operation
- All metal parts are made of grade 304 stainless steel, except the shaft made of grade 431 stainless steel
- Heavy-duty stainless steel discharge head with built-in check valve for long life and easy installation
- Engine mounting specifications according to NEMA standard
- High quality shaft bearings ensuring low friction and high wear resistance
- Stainless steel impellers and diffusers for heavy loads providing optimum performance
- Stainless steel strainer to prevent the ingress of sand and other impurities
Instructions
Technical Specifications
- Maximum flow [l/min]
- 25
- Maximum head [m]
- 102 - 205
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55 - 1.10
- Rated flow [l/m]
- 15
- Rated head [m]
- 72 - 134
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 4
- Maximum immersion depth [m]
- 150
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum current [A]
- 5.80 - 10.80
- Maximum liquid temperature [°C]
- 30
- Cable length [m]
- 1.70
- Protection [IP]
- 68
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 98
- Impeller material
- stainless steel
- Construction
- centrifugal
