PUMPA inox line SPP-05 4-inch submersible pump 230V with Franklin Electric motor

Drinking water certificate Stainless steel

previous next

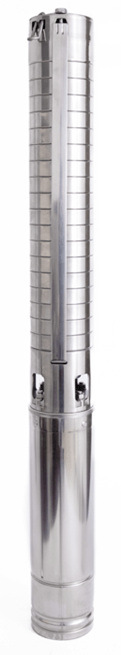

PUMPA inox line SPP-05 4-inch submersible pump 230V with Franklin Electric motor

PUMPA inox line SPP 4" submersible pumps are developed according to the latest technology. They are made of corrosion and abrasion resistant stainless steel. The SPP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. See more

Technical Specifications

Maximum flow [l/min]
25
Maximum head [m]
50 - 238
Input voltage [V]
230
Power output - P2 [kW]
0.37 - 1.10

Show all Tech Specs

available in 5 working days >10 pcs

from 637.25 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS001026

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA inox line SPP-0509 4" 0,37kW 230V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060322 Sale group: CEST EAN: 8596455018841

on demand
check availability
Product availability
  • central warehouse 0 pcs

637.25 €

Check availability

Maximum flow [l/min]
25
Maximum head [m]
50
Input voltage [V]
230
Power output - P2 [kW]
0.37
Rated flow [l/m]
15
Rated head [m]
36
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
3.10
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0514 4" 0,37kW 230Vsubmersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060324 Sale group: CEST EAN: 8596455018865

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

749.19 €

Maximum flow [l/min]
25
Maximum head [m]
78
Input voltage [V]
230
Power output - P2 [kW]
0.37
Rated flow [l/m]
15
Rated head [m]
56
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
3.10
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0518 4" 0,55kW 230V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060326 Sale group: CEST EAN: 8596455018889

available in 5 working days
4 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 4 pcs

861.98 €

Maximum flow [l/min]
25
Maximum head [m]
102
Input voltage [V]
230
Power output - P2 [kW]
0.55
Rated flow [l/m]
15
Rated head [m]
72
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0521 4" 0,55kW 230V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060329 Sale group: CEST EAN: 8596455018919

available in 5 working days
4 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 4 pcs

929.85 €

Maximum flow [l/min]
25
Maximum head [m]
118
Input voltage [V]
230
Power output - P2 [kW]
0.55
Rated flow [l/m]
15
Rated head [m]
81
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0528 4" 0,75kW 230V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060332 Sale group: CEST EAN: 8596455018940

available in 5 working days
10 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 10 pcs

1,100.10 €

Maximum flow [l/min]
25
Maximum head [m]
158
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
15
Rated head [m]
111
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5.50
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0536 4" 1,1kW 230V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060335 Sale group: CEST EAN: 8596455018971

available in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

1,384.37 €

Maximum flow [l/min]
25
Maximum head [m]
205
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
15
Rated head [m]
134
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
7.80
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0542 4" 1,1kW 230V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060338 Sale group: CEST EAN: 8596455019008

available in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

1,569.59 €

Maximum flow [l/min]
25
Maximum head [m]
238
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
15
Rated head [m]
167
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
7.80
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

Product description

Application

  • Drinking water supply of residential buildings from deep drilled wells
  • Utility and industrial water supply
  • Irrigation and other agricultural applications
  • Fire protection systems
  • Pressure amplification in high-rise buildings
  • Other applications

Characteristics

  • Stainless steel construction developed and manufactured to provide many years of fault-free operation
  • All metal parts are made of grade 304 stainless steel, except the shaft made of grade 431 stainless steel
  • Heavy-duty stainless steel discharge head with built-in check valve for long life and easy installation
  • Engine mounting specifications according to NEMA standard
  • High quality shaft bearings ensuring low friction and high wear resistance
  • Stainless steel impellers and diffusers for heavy loads providing optimum performance
  • Stainless steel strainer to prevent the ingress of sand and other impurities

Instructions

Technical Specifications

Maximum flow [l/min]
25
Maximum head [m]
50 - 238
Input voltage [V]
230
Power output - P2 [kW]
0.37 - 1.10
Rated flow [l/m]
15
Rated head [m]
36 - 167
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
3.10 - 7.80
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal
