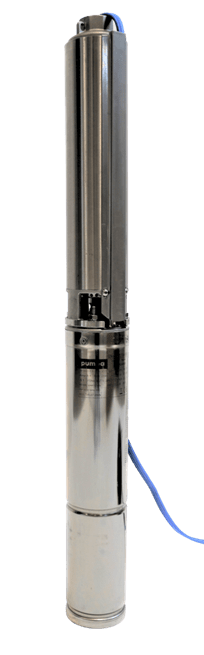

PUMPA inox line STP-35 4" submersible pump 400V

PUMPA inox line STP 4" submersible pumps are developed according to the latest technology. The STP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. See more

Technical Specifications

Maximum flow [l/min]
140
Maximum head [m]
42 - 302
Input voltage [V]
3x400
Power output - P2 [kW]
0.75 - 5.50

Show all Tech Specs

in stock in 5 working days >10 pcs

from 476.64 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS001691

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Check valve
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Product description

Application

  • Water supply
  • Irrigation
  • Pressure boost

Features

  • The delivery and suction casing of the pump are precision-machined parts made of grade 304 cast stainless steel, providing superior strength and durability. The suction casing is NEMA compliant.
  • Floating impellers are made with the addition of NorylR material for perfect sand processing.
  • The pump jacket is made of 304 stainless steel to ensure maximum abrasion resistance.
  • 304 stainless steel shaft coupling allows easy alignment with the motor shaft.
  • The strainer is made of embossed stainless steel 304, which gives it the necessary strength.
  • 304 stainless steel check valve installed in the head prevents the backflow of water and minimalize the water shock affecting
    the pumps.
  • Hexagonal 304 steel rod pump shaft provides high corrosion resistance.
  • 1.5 mm thick polished 304 stainless steel pump casing jacket ensures optimal abrasion resistance.
  • Polyacetal bearing provides high wear and abrasion resistance.

Instructions

Technical Specifications

Maximum flow [l/min]
140
Maximum head [m]
42 - 302
Input voltage [V]
3x400
Power output - P2 [kW]
0.75 - 5.50
Rated flow [l/m]
100
Rated head [m]
25 - 193
Maximum current [A]
2.30 - 13.50
Maximum liquid temperature [°C]
30
