PUMPA inox line STP-60 4" hydraulic part without motor

New

previous next

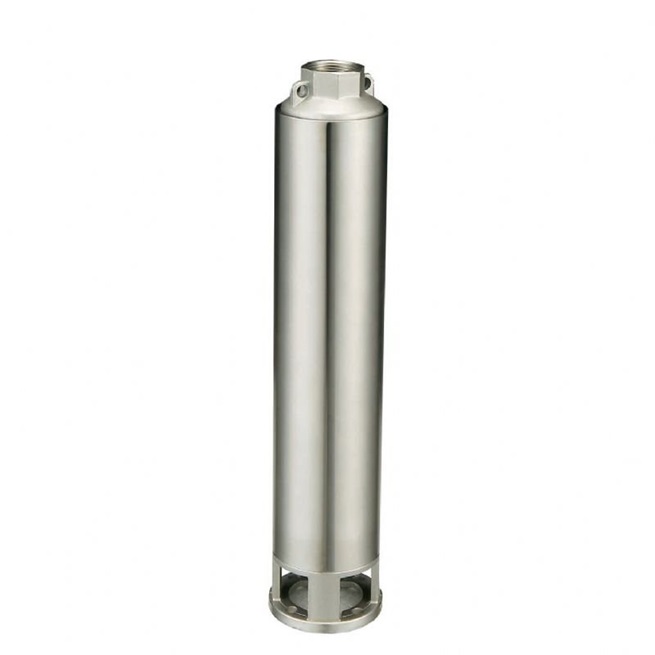

PUMPA inox line STP-60 4" hydraulic part without motor

PUMPA inox line STP 4" submersible pumps are developed according to the latest technology. The STP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. See more

Technical Specifications

Maximum flow [l/min]
260
Maximum head [m]
89
Input voltage [V]
without motor
Rated flow [l/m]
180

Show all Tech Specs

in stock 4 pcs

from 186.34 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS001645

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Rated flow [l/m]
  • Rated head [m]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Product description

Application

  • Water supply
  • Irrigation
  • Pressure boost

Features

  • The delivery and suction casing of the pump are precision-machined parts made of grade 304 cast stainless steel, providing superior strength and durability. The suction casing is NEMA compliant.
  • Floating impellers are made with the addition of NorylR material for perfect sand processing.
  • The pump jacket is made of 304 stainless steel to ensure maximum abrasion resistance.
  • 304 stainless steel shaft coupling allows easy alignment with the motor shaft.
  • The strainer is made of embossed stainless steel 304, which gives it the necessary strength.
  • 304 stainless steel check valve installed in the head prevents the backflow of water and minimalize the water shock affecting
    the pumps.
  • Hexagonal 304 steel rod pump shaft provides high corrosion resistance.
  • 1.5 mm thick polished 304 stainless steel pump casing jacket ensures optimal abrasion resistance.
  • Polyacetal bearing provides high wear and abrasion resistance.

Technical Specifications

Maximum flow [l/min]
260
Maximum head [m]
89
Input voltage [V]
without motor
Rated flow [l/m]
180
Rated head [m]
56
