VIFIDI frequency converter BV1
VIFIDI frequency converter BV1
VIFIDI frequency converter BV1

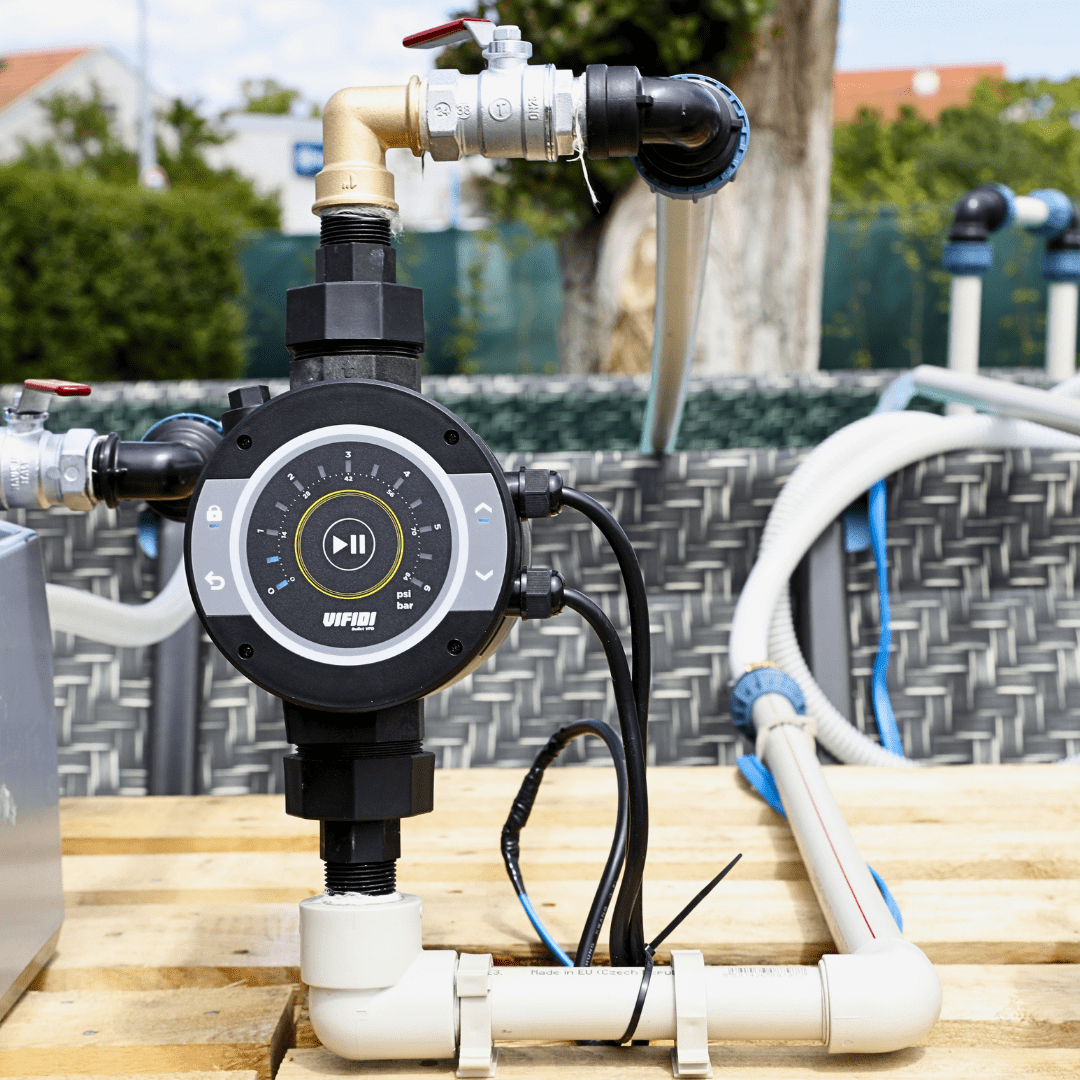

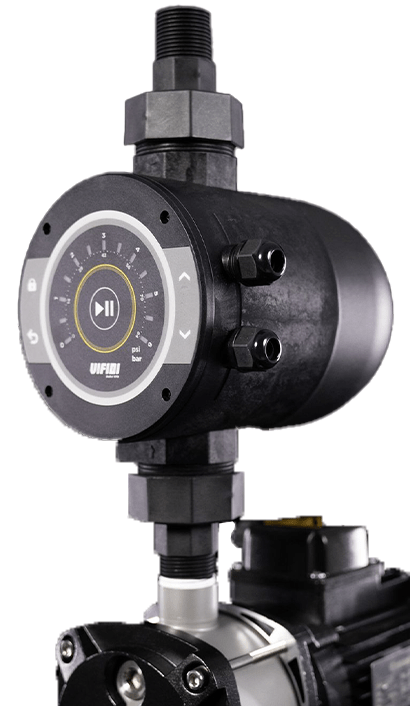

The VIFIDI Bullet VFD is the world's first all-in-one in-line type frequency converter that upgrades and controls most pumps. It provides constant water pressure and saves energy for most water application uses. The product is integrated with all the required functions of a typical frequency converter. Due to its construction and simple time-saving assembly, it sets a new industrial standard. The only frequency converter with constant pressure in the world has been awarded the prestigious iF Product Design award.
Technical Specifications
- Maximum flow [l/min]
- 300
- Input voltage [V]
- Suction port ["]
- 1
- Maximal output current [A]
- 6 - 8
from 261.36 € VAT included
- Brand:
- VIFIDI
- Category:
- Frequency converters
- Product No.:
- MAS001554
Product variants
-
- VIFIDI BV1-08.A.2.5, 0,8kW input 1x230V and output 1x230V
- ZB00068711
- 300
- 1
- 6
- 1
- 50
- 10
- 55
- 1x230
-
Product availability
- central warehouse >10 pcs
- 261.36 €
-
- VIFIDI BV1-11.B.2.5, 1.1kW input 1x230V and output 3x230V
- ZB00067366
- 300
- 1
- 6
- 1
- 50
- 10
- 55
- 3x230
-
Product availability
- central warehouse 9 pcs
- 290.76 €
-
- VIFIDI BV1-15.B.2.5, 1,5kW input 1x230V and output 3x230V
- ZB00068712
- 300
- 1
- 8
- 1
- 50
- 10
- 55
- 3x230
-
Product availability
- central warehouse >50 pcs
- 326.70 €
Variant Product No.
Availability
Price (VAT incl.)
VIFIDI BV1-08.A.2.5, 0,8kW input 1x230V and output 1x230V
Product No.: ZB00068711 Sale group: CECA EAN: 8596455039617 Manuf. No.: BV00108A251000
261.36 €
- Maximum flow [l/min]
- 300
- Input voltage [V]
- Suction port ["]
- 1
- Maximal output current [A]
- 6
- Delivery port ["]
- 1
- Vessel volume [l]
- Maximum liquid temperature [°C]
- 50
- Maximum pressure [bar]
- 10
- Protection [IP]
- 55
- Output voltage [V]
- 1x230
- Dry run protection
- Speed control
- Check valve
VIFIDI BV1-11.B.2.5, 1.1kW input 1x230V and output 3x230V
Product No.: ZB00067366 Sale group: CECA EAN: 8596455039600 Manuf. No.: BV00111B251000
290.76 €
- Maximum flow [l/min]
- 300
- Input voltage [V]
- Suction port ["]
- 1
- Maximal output current [A]
- 6
- Delivery port ["]
- 1
- Vessel volume [l]
- Maximum liquid temperature [°C]
- 50
- Maximum pressure [bar]
- 10
- Protection [IP]
- 55
- Output voltage [V]
- 3x230
- Dry run protection
- Speed control
- Check valve
VIFIDI BV1-15.B.2.5, 1,5kW input 1x230V and output 3x230V
Product No.: ZB00068712 Sale group: CECA EAN: 8596455039624 Manuf. No.: BV00115B251000
326.70 €
- Maximum flow [l/min]
- 300
- Input voltage [V]
- Suction port ["]
- 1
- Maximal output current [A]
- 8
- Delivery port ["]
- 1
- Vessel volume [l]
- Maximum liquid temperature [°C]
- 50
- Maximum pressure [bar]
- 10
- Protection [IP]
- 55
- Output voltage [V]
- 3x230
- Dry run protection
- Speed control
- Check valve
Product description
Use
The VIFIDI Bullet VFD is a system for controlling any 3-phase water pump to operate at variable speed and provide constant water pressure.
Features and benefits
All-In-One: cost savings by simplifying the entire frequency converter system
In-Line Design: time saving thanks to simpler assembly
One-For-All: Compatible with most types and brands of pumps

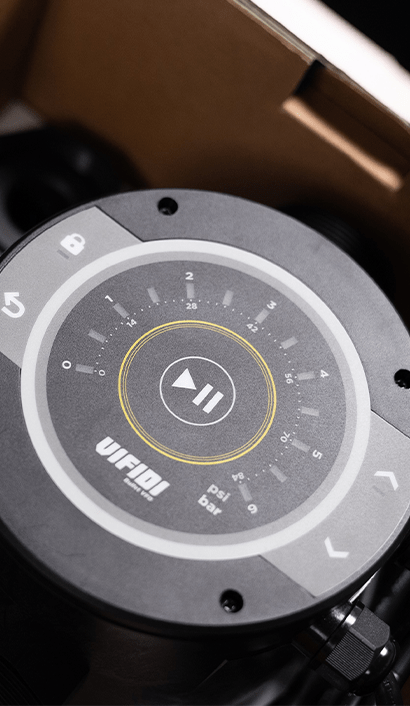

Intuitive interface: Smarter settings and indication of pressure and error status
Constant water pressure: for a better user experience
Energy saving up to 50%: Lower electricity bill and environmental friendliness
Lower operating noise: for a good sleep and a better life
Installation position: possibility of installation in vertical and horizontal position
Multiple protections: to extend the life of the pump and the safest operation
Multiple protections
- Overvoltage and undervoltage protection
- Overcurrent protection
- Locked rotor protection
- Protection against phase failure
- Protection against excessive temperature
- Protection against dry running
- Leak warning
- Overpressure protection
- Protection against freezing
Technical Specifications
- Maximum flow [l/min]
- 300
- Input voltage [V]
- Suction port ["]
- 1
- Maximal output current [A]
- 6 - 8
- Delivery port ["]
- 1
- Vessel volume [l]
- Maximum liquid temperature [°C]
- 50
- Maximum pressure [bar]
- 10 - 10
- Protection [IP]
- 55
- Output voltage [V]
- 1x230, 3x230
- Dry run protection
- Speed control
- Check valve
