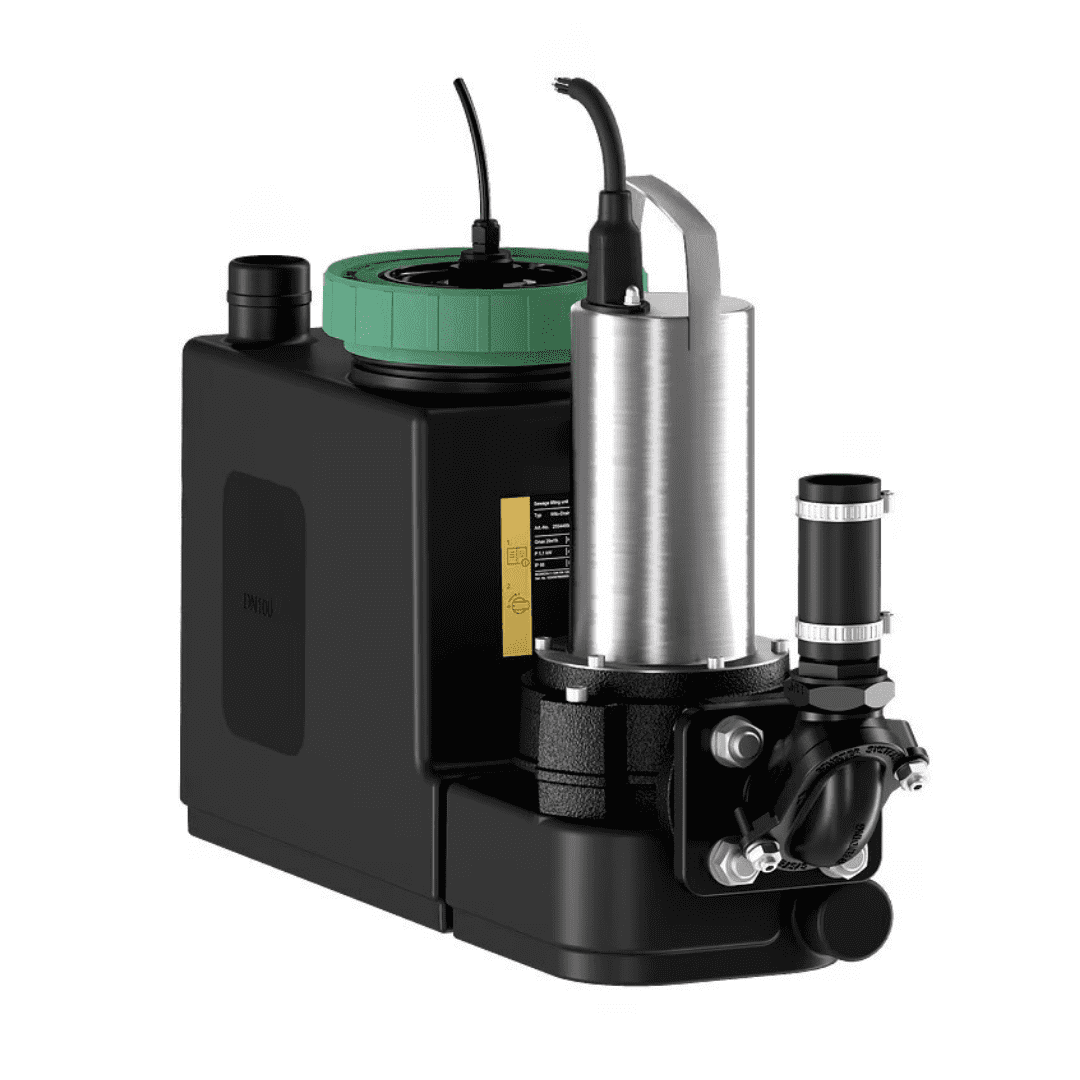

WILO DrainLift SANI CUT

Compact, ready-to-connect and fully submersible pumping station with separate pump and hydraulic grinding device for transporting sewage containing faeces.

Pumped medium

For collecting and transporting these media in commercial areas:

• Sewage with faecal matter
• Sewage water without fecal matter

Wastewater transport in accordance with standard 12050

The pumping station complies with DIN EN 12050-1.

Construction

Gas-tight and watertight collection tank:

• Sloping floor at an angle
• Inspection opening with transparent cover
• Freely selectable inlets in the areas shown
• Level measurement with analog output signal via reed contact and two switching points.

Grinding device pump:

• Mounted directly on the collection tank
• Surface-cooled (air) motor with thermal motor protection
• Discharge connection with connected non-return valve

Pre-wired switching device for automatic operation:

• Collective fault signal with potential-free contact
• Integrated alarm independent of the power supply
• Adjustable delay time
• 1.5 m power cable with connected plug

Scope of delivery

• Fully submersible transfer station with grinding device, switch and power cable including plug
• Pipe connection DN/OD 40
• HT double socket DN/OD 50 for vent connection
• HT double socket DN/OD 50 for drain connection
• Inlet set with 124 mm (5 inch) hole saw and seal for HT pipe DN/OD 110
• Set for anchoring to the floor
• Pad for noise insulation
• Rechargeable 9 V battery
• Installation and operating instructions
