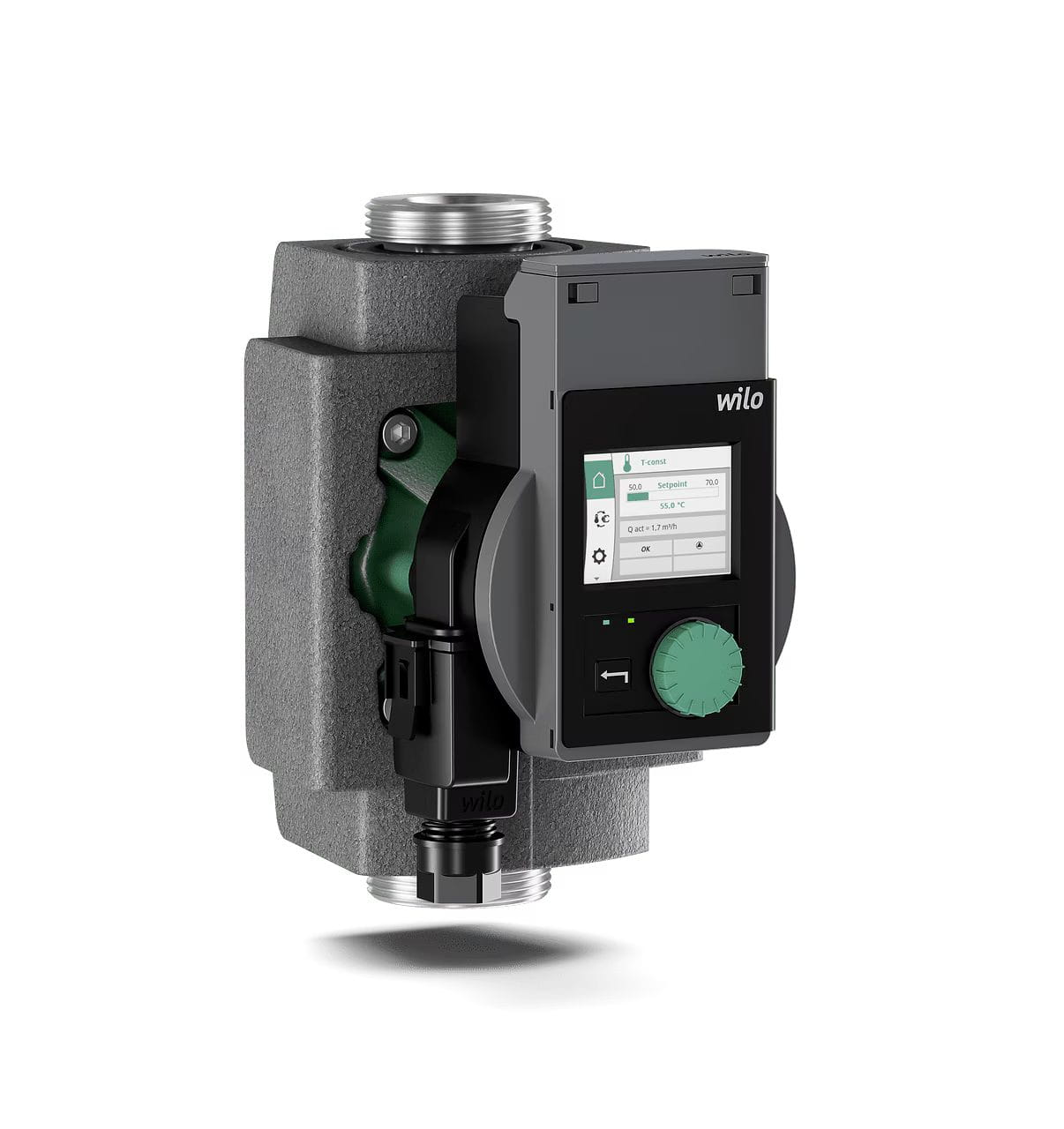

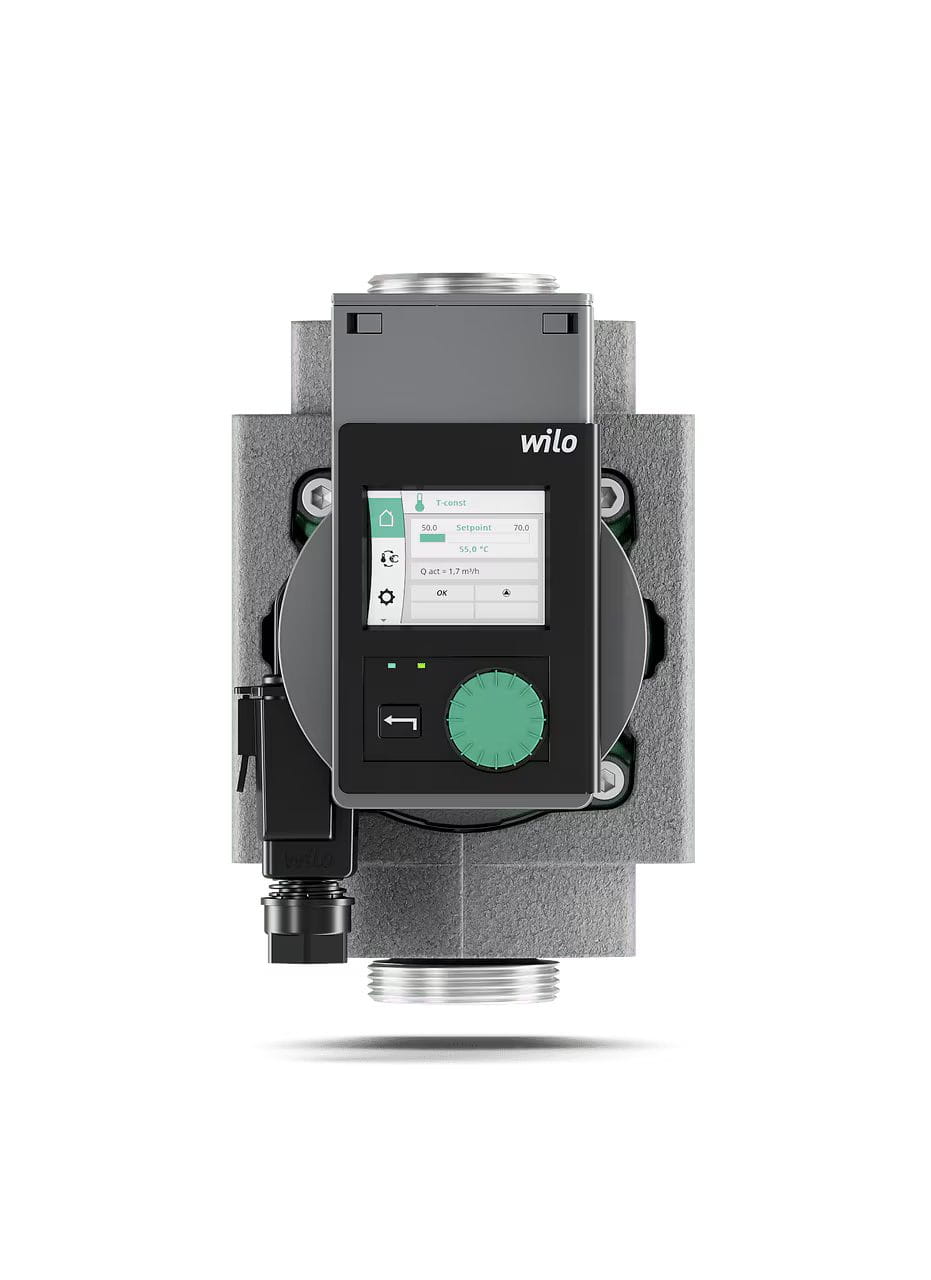

WILO STRATOS PICO-Z

The Wilo-Stratos PICO-Z is an ideal circulation circulation pump for hot water supply in family houses and smaller buildings with a combination of residential and commercial use. See more

Technical Specifications

Maximum flow [l/min]
60
Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0.02 - 0.05

Show all Tech Specs

in stock 2 pcs

from 310.69 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
WILO
Category:
Hot water recirculation pumps - Wilo
Product No.:
MAS000839

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Drinking water certificate
  • Maximum current [A]
  • Protection [IP]
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Port-to-port length
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

WILO Stratos PICO-Z 20/0,5-4 (150mm)

Product No.: ZB00069251 Sale group: CEW01 EAN: 4062679266053 Manuf. No.: 4255430

on demand
check availability
Product availability
  • central warehouse 0 pcs

310.69 €

Check availability

Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0,02
Suction port ["]
5/4
Delivery port ["]
5/4
Drinking water certificate
YES
Maximum current [A]
0,26
Protection [IP]
X4D
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
150

WILO Stratos PICO-Z 20/0,5-6 (150mm)

Product No.: ZB00069252 Sale group: CEW01 EAN: 4062679266060 Manuf. No.: 4255431

on demand
check availability
Product availability
  • central warehouse 0 pcs

346.77 €

Check availability

Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0,03
Suction port ["]
5/4
Delivery port ["]
5/4
Drinking water certificate
YES
Maximum current [A]
0,44
Protection [IP]
X4D
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
150

WILO Stratos PICO-Z 25/0,5-4 (180mm)

Product No.: ZB00069254 Sale group: CEW01 EAN: 4062679266077 Manuf. No.: 4255433

on demand
check availability
Product availability
  • central warehouse 0 pcs

312.21 €

Check availability

Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0,02
Suction port ["]
5/4
Delivery port ["]
5/4
Drinking water certificate
YES
Maximum current [A]
0,26
Protection [IP]
X4D
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
180

WILO Stratos PICO-Z 25/0,5-6 (180mm)

Product No.: ZB00069255 Sale group: CEW01 EAN: 4062679266084 Manuf. No.: 4255434

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

346.77 €

Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0,03
Suction port ["]
5/4
Delivery port ["]
5/4
Drinking water certificate
YES
Maximum current [A]
0,44
Protection [IP]
X4D
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
180

WILO Stratos PICO-Z 25/0,5-8 (180mm)

Product No.: ZB00069256 Sale group: CEW01 EAN: 4062679265797 Manuf. No.: 4255435

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

382.34 €

Maximum flow [l/min]
60
Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0,05
Suction port ["]
5/4
Delivery port ["]
5/4
Drinking water certificate
YES
Maximum current [A]
0,44
Protection [IP]
X4D
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
180

WILO Stratos PICO-Z 20/0,5-8 (150mm)

Product No.: ZB00069253 Sale group: CEW01 EAN: 4062679266091 Manuf. No.: 4255432

on demand
check availability
Product availability
  • central warehouse 0 pcs

382.34 €

Check availability

Maximum flow [l/min]
60
Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0,05
Suction port ["]
5/4
Delivery port ["]
5/4
Drinking water certificate
YES
Maximum current [A]
0,44
Protection [IP]
X4D
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
150

Product description

Maximum hygiene and energy efficiency in hot water circulation.

Description

The Wilo-Stratos PICO-Z is the ideal circulation pump for hot water supply in family houses and smaller buildings with a combination of residential and commercial use. Thanks to the stainless steel pump body and the identification and support of thermal disinfection, it offers the highest possible hygienic safety for the entire hot water installation. Thanks to the Wilo-Connector, it is quickly installed electrically and commissioned in factory settings with one click. The high-efficiency pump equipped with an electronically commutated motor together with a manual or temperature-controlled operating mode offers all the possibilities of reducing individual electricity consumption. A large color display, a clear menu of settings in conjunction with the green button technology ensure very convenient control of the pump.

Your benefits

  • Stainless steel pump body, identification and thermal disinfection support for maximum hygiene of hot water equipment.
  • Demand-oriented energy-saving supply through temperature-controlled or manual operating mode
  • Large color display, clear menu of settings and green button technology for easy operation
  • Easy installation of electrical components with Wilo-Connector​
  • Overview of current parameters such as temperature, flow rate, consumed energy and consumed kilowatt-hours
  • One-click commissioning via temperature control as factory setting​
  • Optional: Communication using an external add-on module

Instructions

Technical Specifications

Maximum flow [l/min]
60
Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0.02 - 0.05
Suction port ["]
5/4
Delivery port ["]
5/4
Drinking water certificate
YES
Maximum current [A]
0.26 - 0.44
Protection [IP]
X4D
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
150, 180
