The self-priming pump SVA from the manufacturer Sigma Hranice is designed for pumping drinking and utility water up to 90 °C without mechanical impurities. They are small pumps for a wide range of needs, especially suitable in domestic waterworks, in permanent settlements and cottages, for spraying gardens. In the version with mechanical seal, it is also used for pumping Class I - IV combustibles. It can also be used for pumping oils up to a certain viscosity. See more

Technical Specifications

Maximum flow [l/min]
79.80
Maximum head [m]
50
Suction port ["]
5/4
Rated flow [l/m]
36

Show all Tech Specs

in stock 3 pcs

201.25 € VAT included

Delivery accross EU within 3-7 business days %

Brand:
Sigma Pumpy
Category:
Horizontal surface pumps
Product No.:
ZB00003299
Sale group:
CESH1
Manuf. No.:
SVA--00084

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Suction port ["]
  • Rated flow [l/m]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

32-SVA-130-10-1°-LM-90-1 without motor

Product No.: ZB00003299 Sale group: CESH1 Manuf. No.: SVA--00084

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

201.25 €

Maximum flow [l/min]
79.80
Maximum head [m]
50
Suction port ["]
5/4
Rated flow [l/m]
36
Delivery port ["]
5/4
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum liquid temperature [°C]
90
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Pump design
horizontal
Impeller material
brass
Construction
self priming
You are viewing this variant

32-SVA-130-10-2°-LM-90-1 without motor with feet

Product No.: ZB00003300 Sale group: CESH1 Manuf. No.: SVA--00097

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

218.54 €

Maximum flow [l/min]
79.80
Maximum head [m]
100
Suction port ["]
5/4
Rated flow [l/m]
36
Delivery port ["]
5/4
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum liquid temperature [°C]
90
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Pump design
horizontal
Impeller material
brass
Construction
self priming

32-SVA-130-10-3°-LM-90-1 without motor (with feet)

Product No.: ZB00003304 Sale group: CESH1 Manuf. No.: SVA--00110

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

269.29 €

Maximum flow [l/min]
79,80
Maximum head [m]
145
Suction port ["]
5/4
Rated flow [l/m]
36
Delivery port ["]
5/4
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum liquid temperature [°C]
90
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Pump design
horizontal
Impeller material
brass
Construction
self priming

Product description

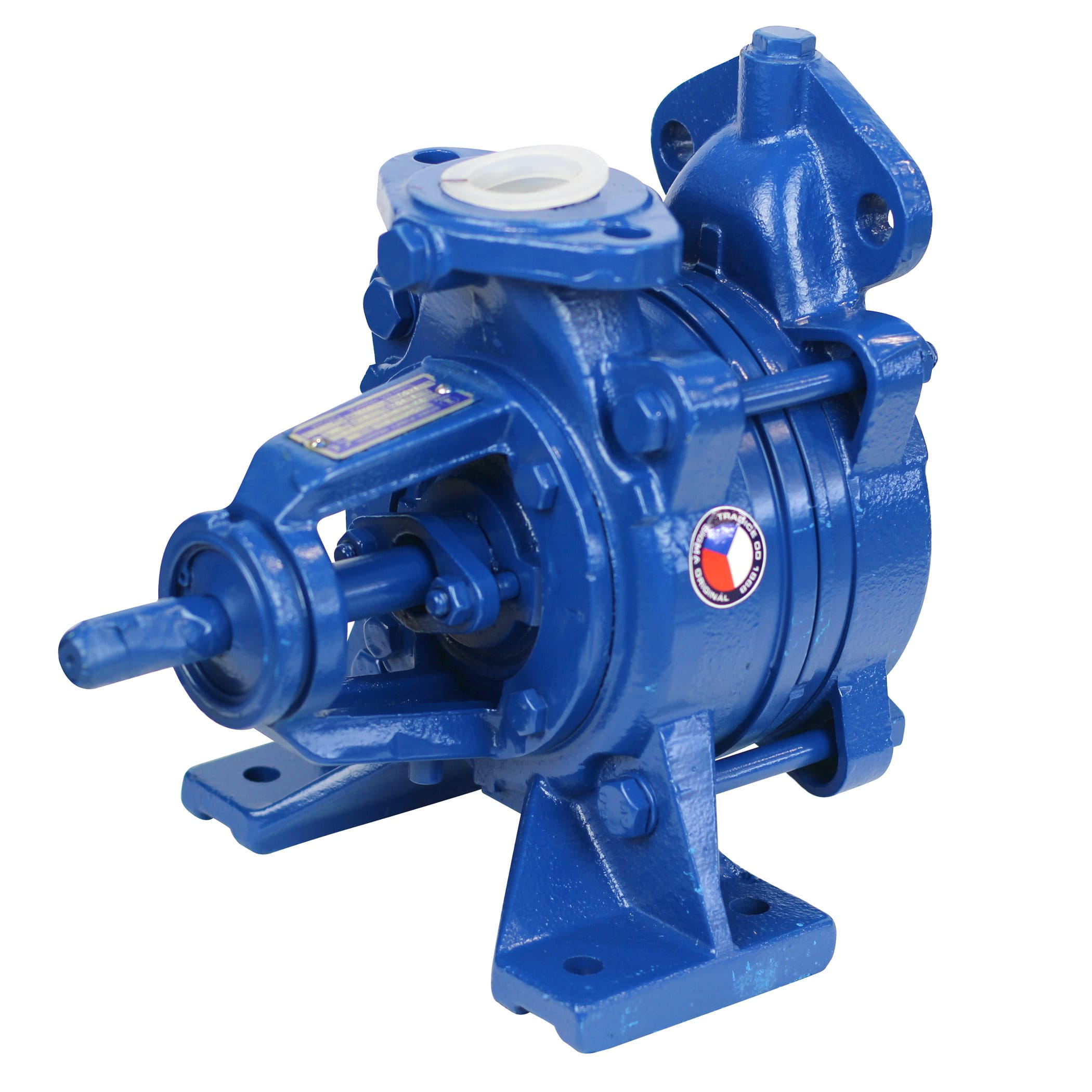

Sigma SVA self-priming pump

The SVA series pumps are rotary, horizontal, self-priming pumps designed for direct connection to a drive motor.
When viewed from the motor side, the SVA series pumps are left-handed (i.e., the shaft rotation is counterclockwise).

Application:

SVA series pumps are primarily designed for pumping clean water without mechanical impurities up to a temperature of 90°C. They are mainly used as part of domestic water supply systems in family homes and cottages, for garden irrigation and wherever the suction head, including resistance, does not exceed 8 m.

With a special mechanical seal, the pumps can also be used to pump flammable liquids of classes I to IV or oils with a maximum kinematic viscosity of 37 mm2.s-1.

To ensure 100% functionality of the mechanical seal, do not use a check valve on the discharge side! Since the entire suction pipe is under pressure up to the suction basket, we recommend installing pumps with mechanical seals wherever the suction pipe is new, ideally plastic. If water containing deposits (e.g. hard water with a high mineral content or ferrous water) is pumped, we do not recommend the use of pumps with mechanical seals!
Deposits significantly reduce the service life of mechanical seals and in these cases it is more reliable to use pumps with a rope seal.

Pump marking:

LM-075-1: foot-mounted pump with mechanical seal – solo with free shaft end.

For further details, please refer to the pump brochure.

Type code:

typový klíč

Additional technical information

Max. speed (rpm): 1440
Material: cast iron, steel, brass
Number of stages: 1
Seal: rope
Connection: G 5/4"
Delivery includes: Pump with motor. Counterflanges are not included in the delivery.

Advantages of SVA series pumps

The advantage of SVA series pumps is their self-priming capability, i.e., before the first start-up, it is sufficient to fill only the pump (without completely filling suction pipe).

Another advantage is their long service life, which we guarantee with an extended 3-year warranty.
