Guide to choosing a Grundfos pump

Here you will find a guide to choosing the right pump for heating and hot water circulation systems in houses and small commercial buildings.



use of pumps

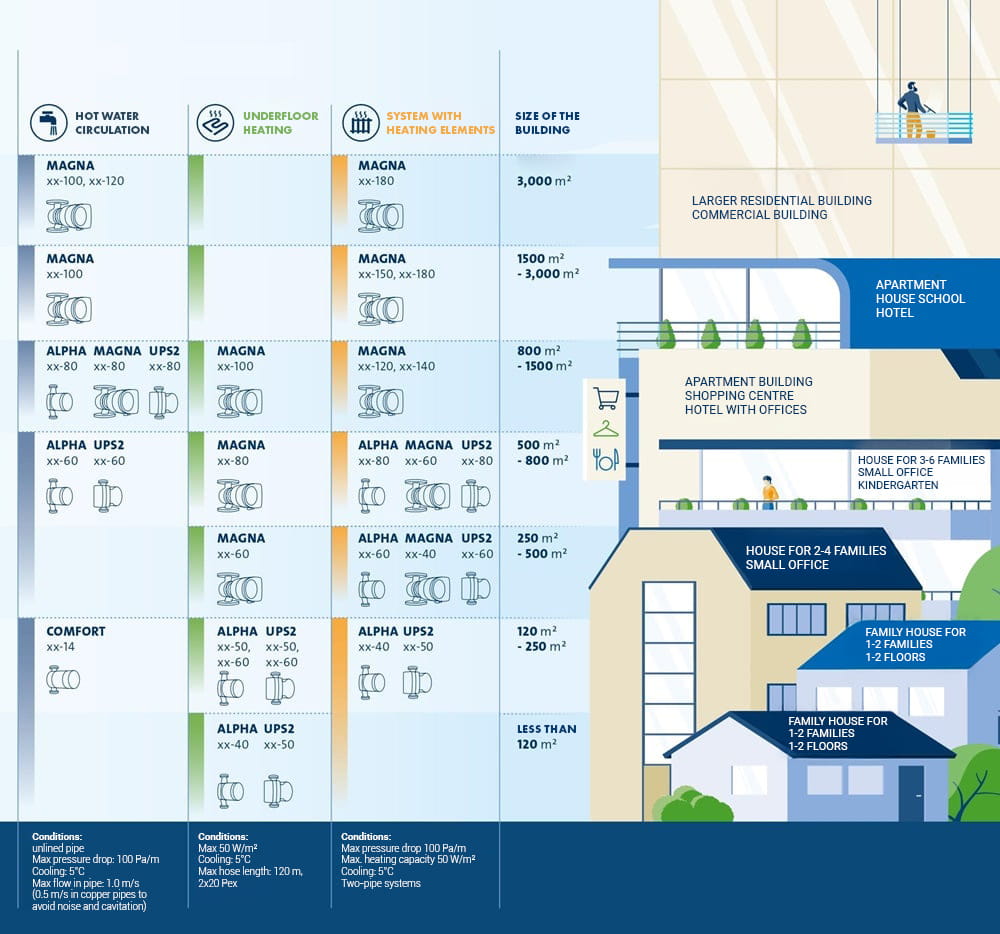

In the overview you can see the latest series of Grundfos pumps available and their suitability for hot water recirculation, underfloor heating and radiant heating for both domestic and smaller commercial buildings.

pump models

For model specifications, please visit the product detail on the e-shop for further technical details and application-specific benefits.

Which pump is suitable for your building?

Whether at home, at school or at work, efficient and reliable hot water distribution is essential for heating and supplying hot water.

To meet all requirements, Grundfos offers top quality pumps in the COMFORT, ALPHA and MAGNA series for water supply to homes, schools, shops and small businesses - all meeting the energy efficiency requirements of the latest EuP/ErP directive.

Want to know more about a specific pump or model series? Below we have gathered all the parameters you need to choose the ideal pump for your project.

GRUNDFOS MAGNA series

The MAGNA series is the ideal choice for hot and cold water circulation in larger buildings.

MAGNA pumps are suitable for new and existing systems of various types, including:

  • Heating systems
  • Air conditioning and refrigeration systems
  • Hot water circulation systems
  • Geothermal systems
  • Solar energy systems

All MAGNA double pumps communicate with each other via wireless connection. The adjustable alternation of the individual heads facilitates reliable operation and makes MAGNA pumps particularly suitable for buildings where uptime is essential, such as hospitals. The MAGNA range includes more than 200 single and double circulators with cast iron or stainless steel bodies and a maximum conveying height of 18 m and a maximum flow rate of 70 m3/h.

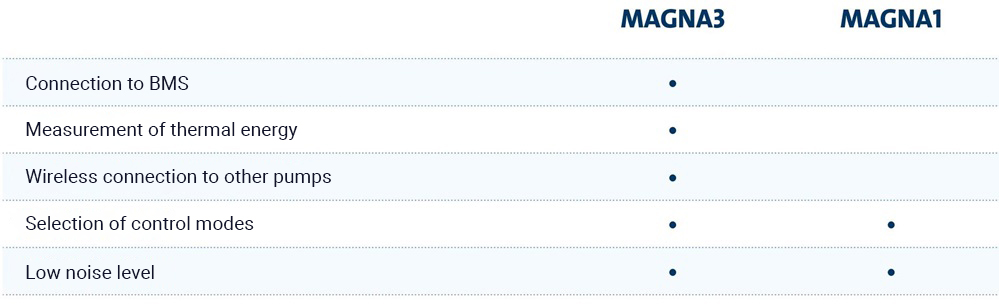

The MAGNA range offers features suitable for larger buildings, ensuring all your needs are met.

Grundfos MAGNA

previous next

View product

Learn more about AUTOADAPT and FLOWADAPT

AUTOADAPT

AUTOADAPT is an intelligent technology that allows Grundfos pumps to adjust motor speed, flow and pressure according to external factors such as external temperature and consumption. Using advanced algorithms, AUTOADAPT ensures maximum comfort with minimum energy consumption.

FLOWADAPT

FLOWADAPT has all the advantages of AUTOADAPT combined with the FLOWLIMIT function. This means that FLOWADAPT allows you to define the maximum pump flow without the need for throttling valves while minimizing losses.

GRUNDFOS ALPHA series

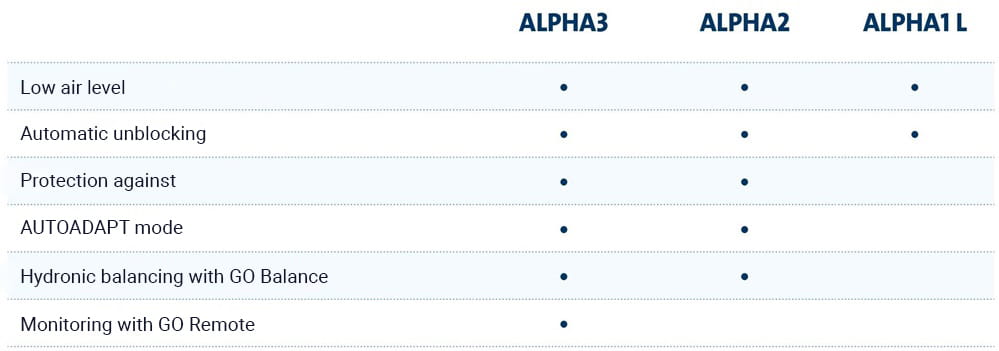

Grundfos ALPHA pumps (ALPHA1 L, ALPHA2 and ALPHA3) include a complete range of circulators for heating and hot water systems in houses and small commercial buildings.

Grundfos ALPHA

previous next

OTHER APLHA MODELS

GRUNDFOS COMFORT

The COMFORT range of energy-saving pumps helps reduce energy consumption and water waste. COMFORT wet-running pumps are installed on the return line of the hot water circulation system and operate noiselessly. They ensure that hot water is available at the tap or shower at any time without waiting. This eliminates waiting time for hot water and the waste of cold water that has to be drained from the tap.

Grundfos COMFORT

previous next

Downloads Guide to choosing a Grundfos pump (PDF , 5994 kB)
