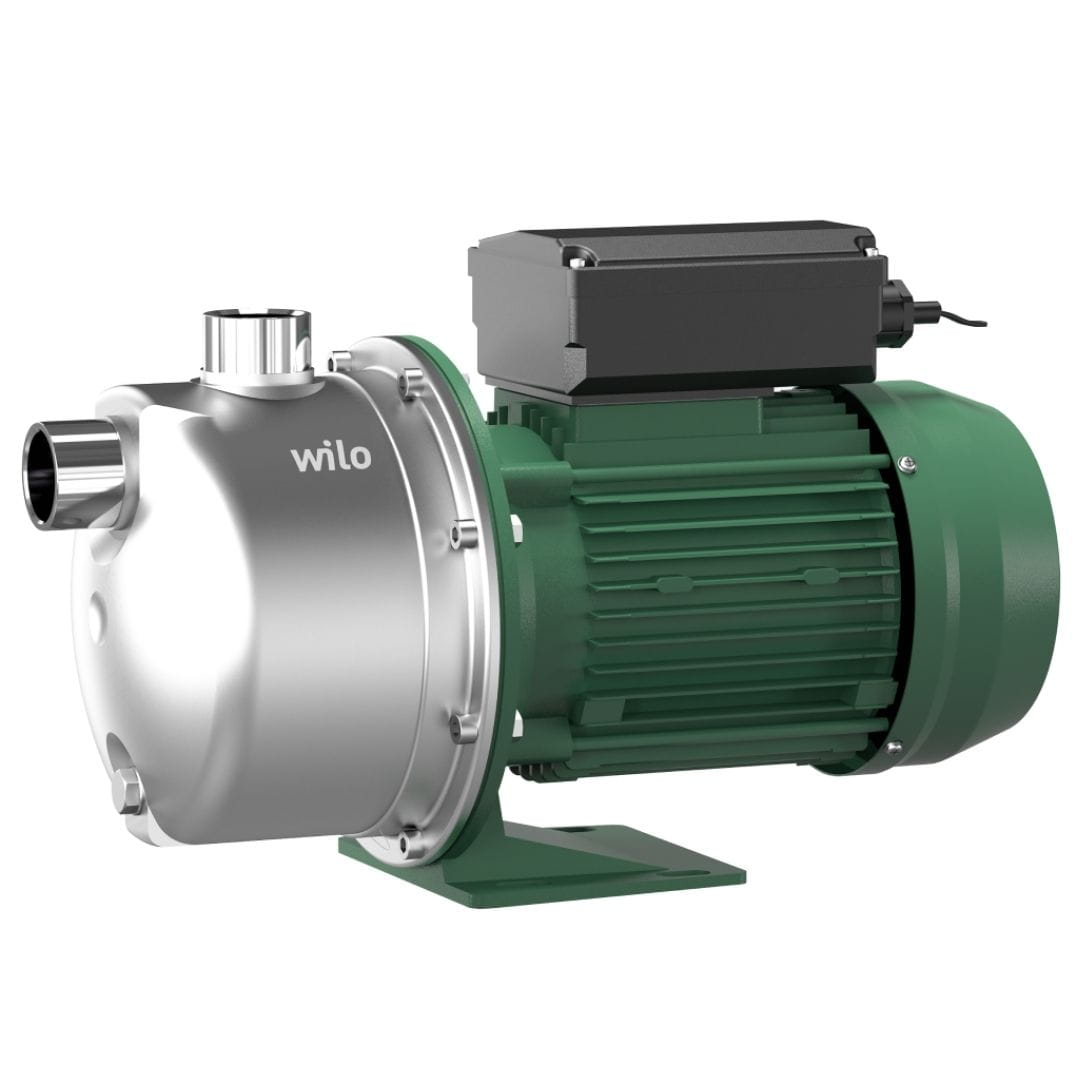

WILO WJ 204 X EM 1,0kW 230V

Self-priming, single-stage jet pump for water supply, drenching and rainwater harvesting applications. See more

on demand check availability

260.15 € VAT included

On demand

Delivery accross EU within 3-7 business days %

Brand:
WILO
Category:
Horizontal surface pumps
Product No.:
ZB00071999
Sale group:
CEW05
Manuf. No.:
4262917

Product variants

  • Technical Specifications
  • Product No.
  • Power output - P2 [kW]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

You are viewing this variant

Product description

Self-priming, single-stage jet pump for water supply, drenching and rainwater harvesting applications.

Applications

  • Pumping water from wells
  • Filling, draining, pumping, watering and irrigation
  • As an emergency pump during floods

Equipment/functions

  • Depending on the version with or without handle
  • For single-phase motor (1 - 230 V):
  • Connection cable with plug
  • On/off switch
  • Motor thermal circuit breaker

Technical data

  • Mains connection 1~230 V, 50 Hz or 3~400 V, 50 Hz
  • Inflow pressure max. 2 bar
  • Medium temperature max. +5 °C to +35 °C
  • Max. operating pressure 6 bar
  • Protection class IP44
  • Inlet and discharge connection G 1

Materials

  • Pump casing stainless steel 1.4301
  • Impeller stainless steel 1.4301
  • Stainless steel shaft 1.4005
  • Mechanical seal ceramic/carbon
  • Diffuser/injector noryl
  • NBR seal

Your advantages

  • User-friendly operation thanks to low weight and compact dimensions as well as practical handle
  • High supply reliability due to good hydraulic performance, self-priming up to 8 m, even at low flow rates
  • Robust stainless steel construction for long service life, impeller, shaft and housing
    made of AISI 304
  • IE3-IEC three-phase motor (≥ 0.75 kW)

Instructions
